BendixKing KMA-24-01 Audio Panel (Preowned)

Part No: 066-1055-01

Shipping calculated at checkout.
Sizing guide

Pickup available at 3650 Drane Field Rd

Usually ready in 24 hours

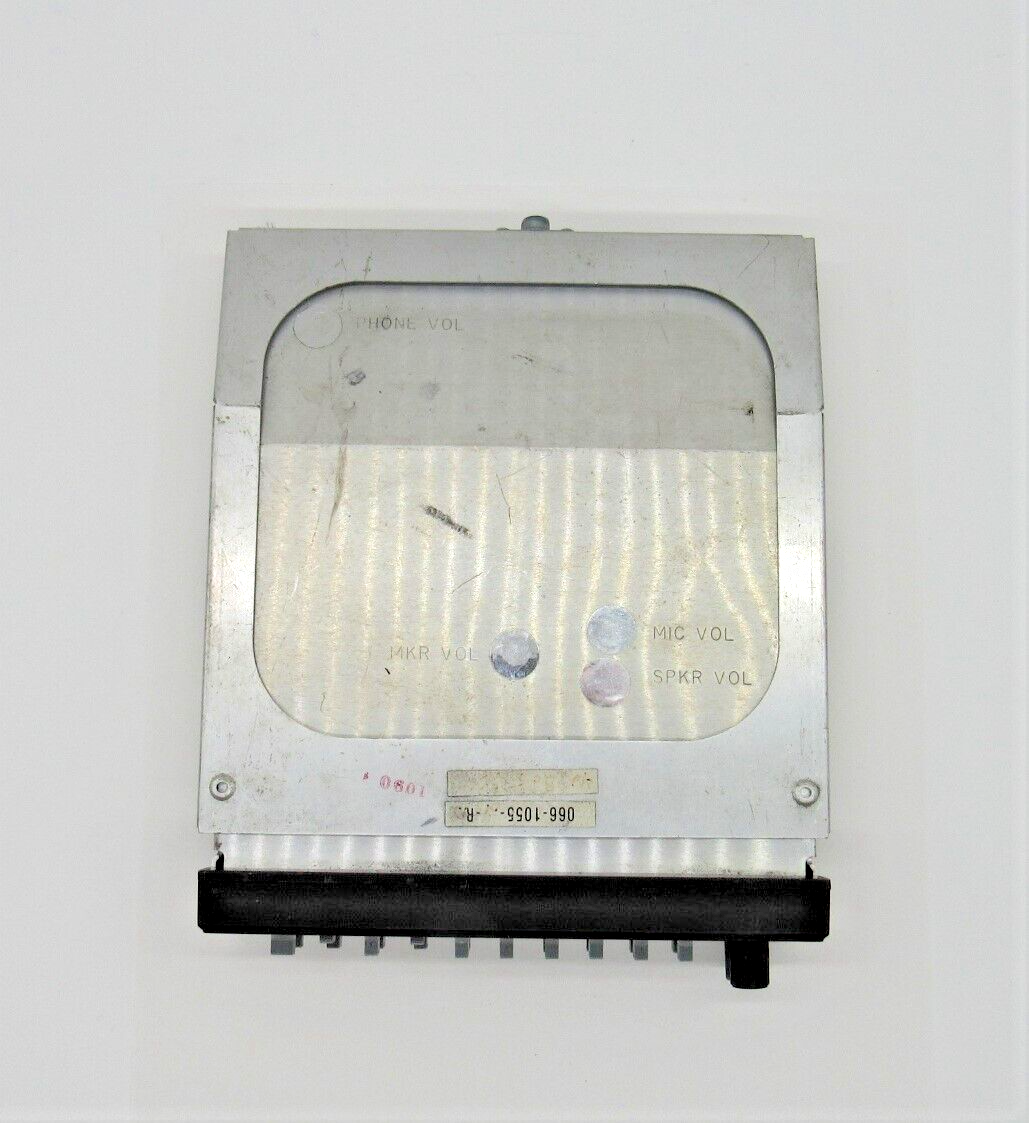

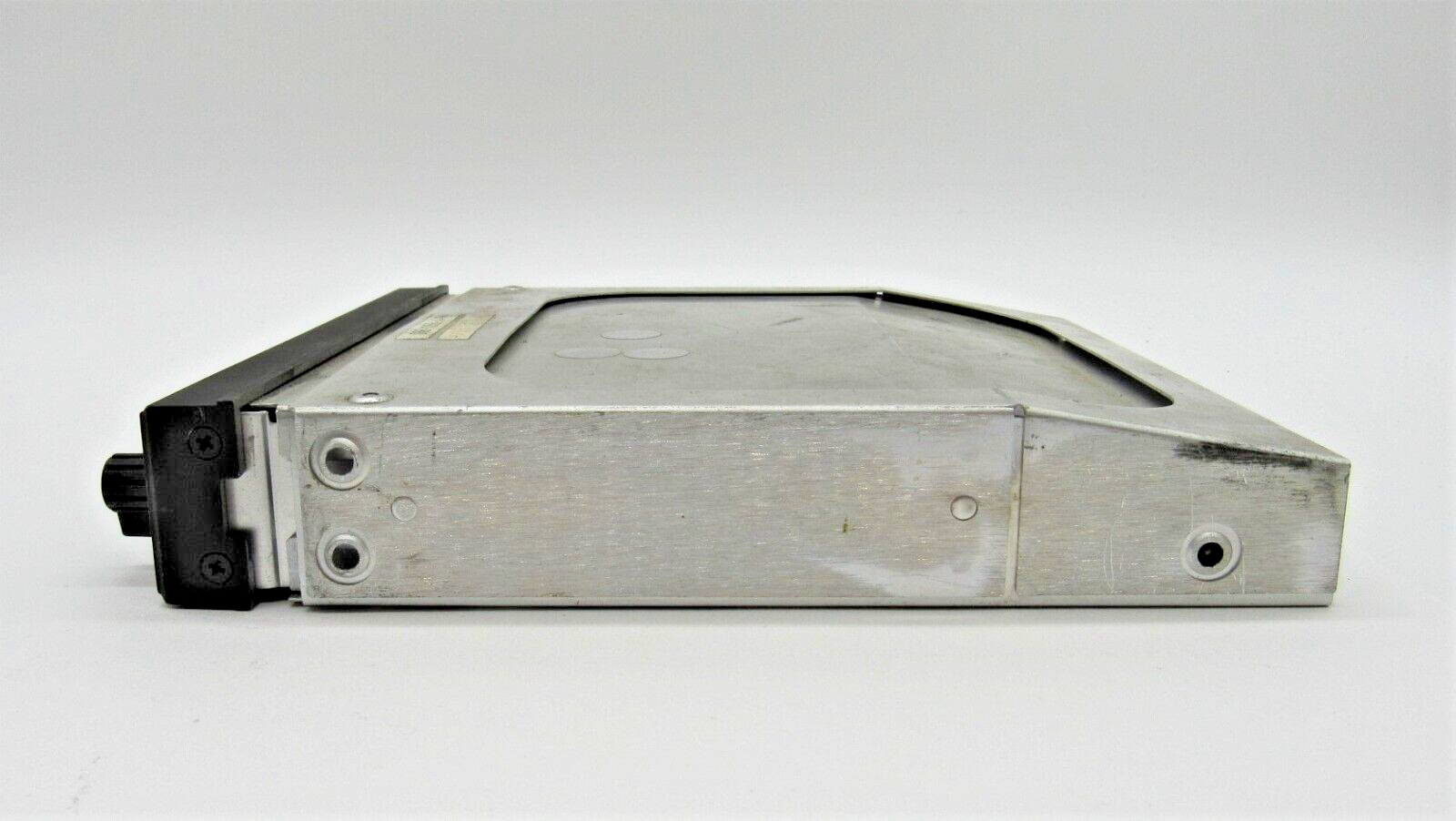

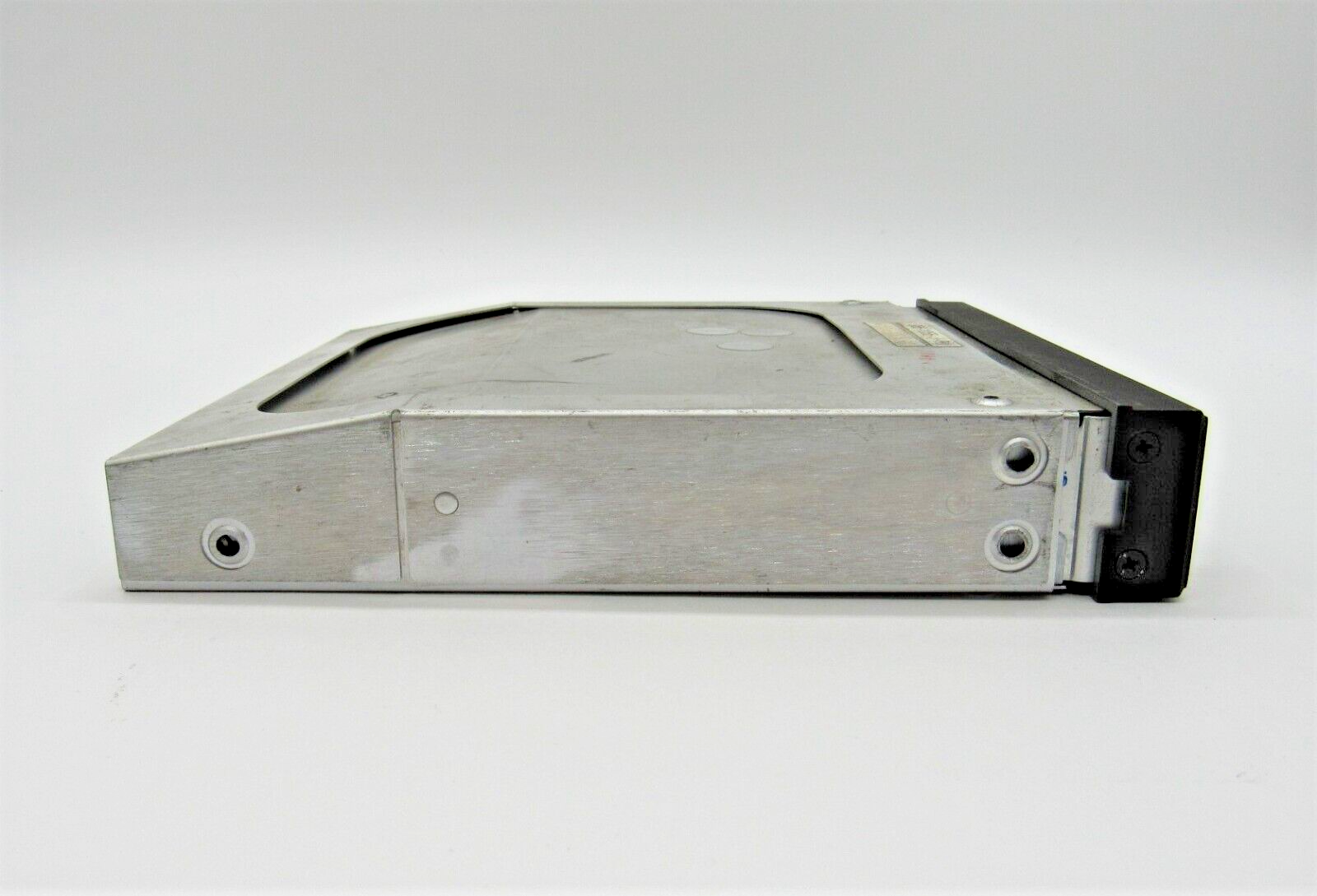

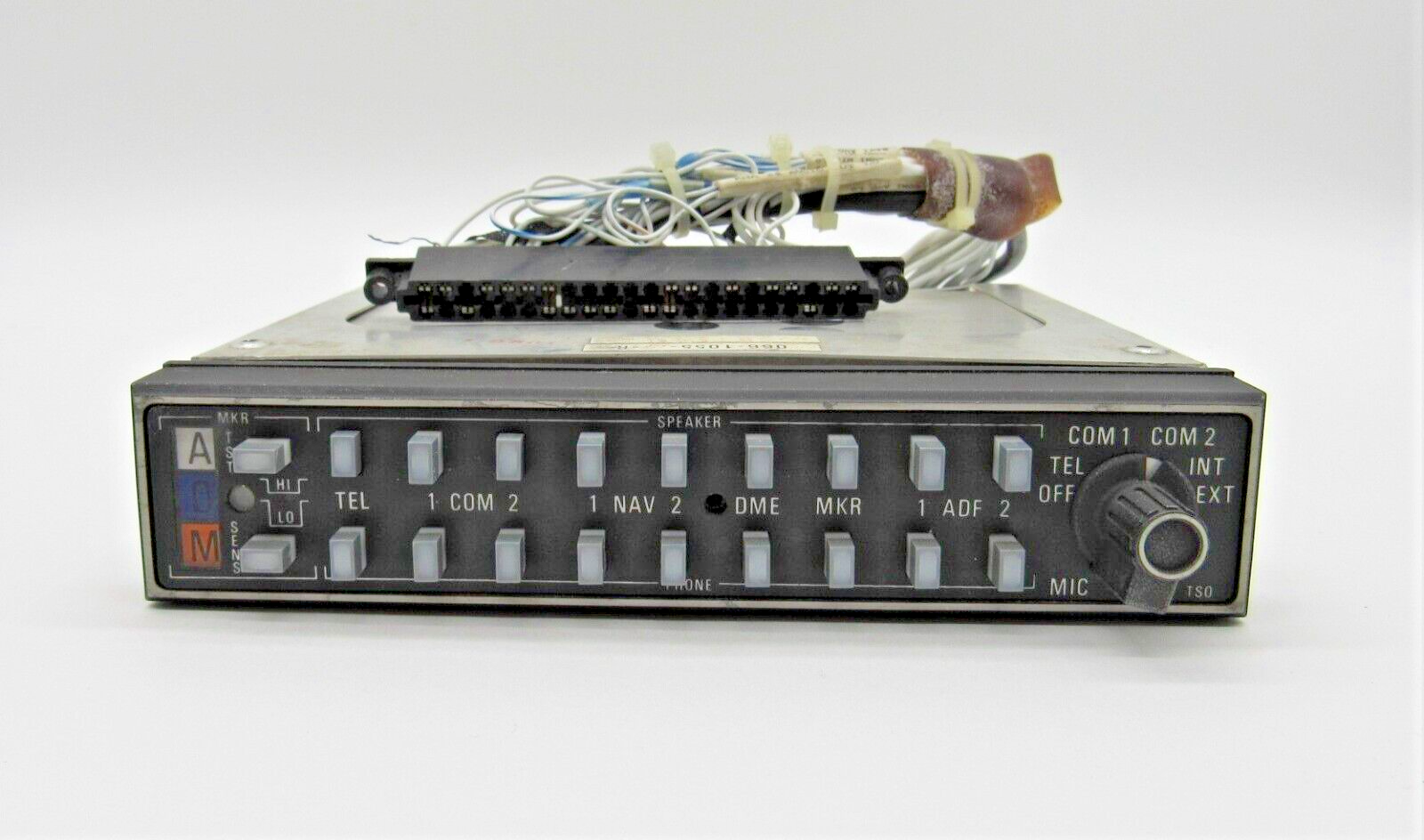

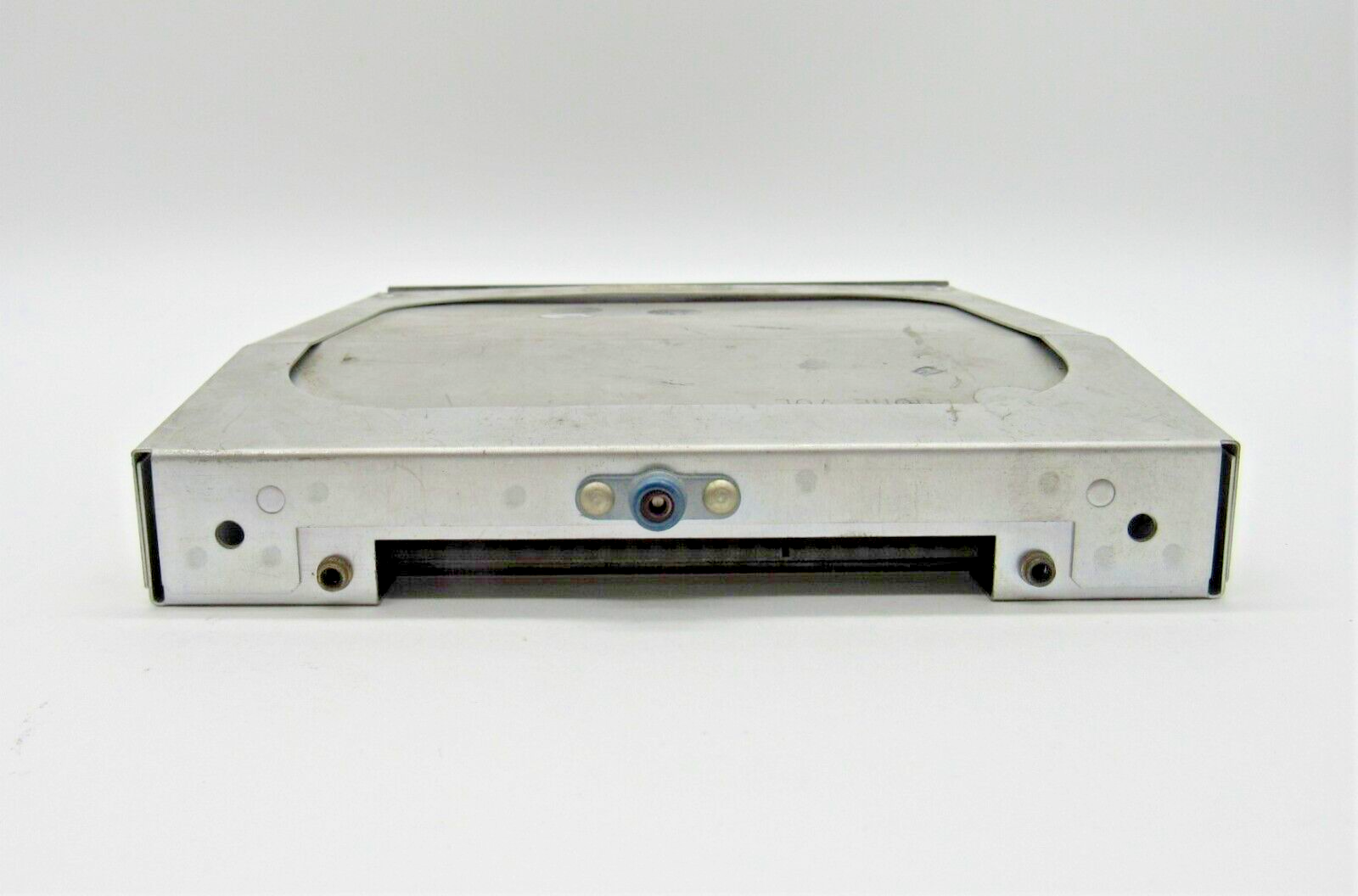

BendixKing KMA-24-01 Audio Panel


  • Compact, fully solid-state unit containing pushbutton audio selector panel, speaker and headphone isolation amplifiers, and a marker beacon receiver
  • Styled to match with the other King Silver Crown units but can be integrated into any 500 ohm output audio system
  • Can handle as many three transceivers and six receivers
  • Models with different features and combinations of marker light presentation, AUTO, 2 COMMs, 2 NAVs, DME, ADF, HF, TEL selections (see table below)
  • Has two unswitched inputs for use as altimeter warning and telephone ringer
  • Has outputs for ramp hailer and passenger address or intercom
  • Separate isolation amplifiers are provided for headphones and speaker to provide isolation even when the same source is selected
  • Three isolated 16 ohm resistors provided for transceiver speaker output loads
  • Automatic dimming for marker beacon lights
  • 14V or 28VDC operation
  • TSO'd
