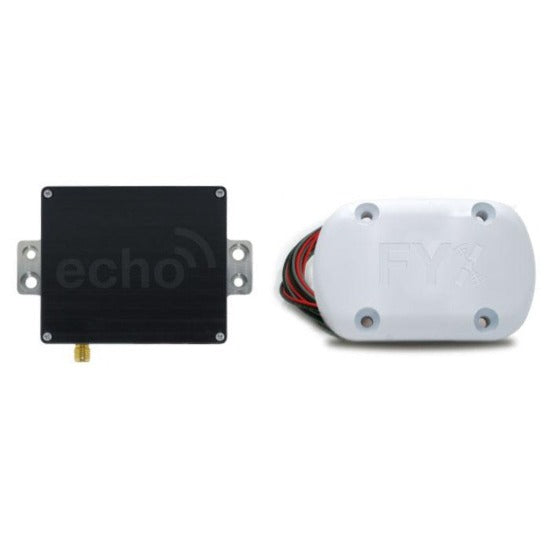

uAvionix echoUAT+skyFYX-EXT Bundle

The echoUAT is a Class B1S ADS-B UAT transmitter coupled with a dual-link 1090MHZ / UAT receiver. An integrated Wi-Fi system transmits traffic and weather to popular Electronic Flight-Bag (EFB) applications on iOS and Android, including ForeFlight Mobile. Direct interface support for common EFIS systems such as Dynon SkyView, GRT and MGL. A zero-install, internal wireless monitor decodes replies from legacy Mode C transponders for maximum retro-fit capability. Extensive position source compatibility, including the uAvionix SKYFYX GPS.

The echoUAT meets the performance requirements of 14 CFR 91.227.

SkyFYX combines a high precision WAAS GNSS sensor with an integrated RAIM processor. Resilient against jamming, spoofing and GPS range errors—SkyFYX provides reliable navigation in challenging environments. SkyFYX is the most affordable ADS-B rule-compliant position source companion for the echoUAT ADS-B transceiver.

The SkyFYX meets the performance requirements of 14 CFR 91.227. For use in Experimental and LSA aircraft.

Included with the echoUAT+SkyFYX-EXT bundle:

• echoUAT ADS-B Transceiver
• Wiring harness
• SMA to BNC lead
• UAT(978) antenna
• SkyFYX-EXT All-in-One GPS Receiver and Antenna
