G3X Autopilot

Part No: G3X Autopilot

Shipping calculated at checkout.
Options: G3X Autopilot Single Axis
Sizing guide

Pickup available at 3650 Drane Field Rd

Usually ready in 24 hours


Autopilot Avionics

All it takes is the addition of Garmin’s affordable GSA 28 “smart” servo units to give your G3X a range of autopilot capabilities similar to those provided by the high-end GFC™700 systems found on thousands of certified aircraft. You have the option of purchasing 1 servo (roll only), or 2 servos (pitch + roll) to add the level of capability you want. Even better, the Garmin system includes automatic trim functionality at no additional cost. And for added redundancy, it’s the only integrated autopilot in its class to offer standalone operation in the event of EFIS display outage or shutdown.

Garmin G3X Autopilot

The optional GMC 305 control panel is a dedicated interface unit that provides advanced autopilot modes like indicated airspeed hold, independent flight director, and third axis yaw damper (when installed with appropriate servos). A control wheel integrated into the GMC 305 makes for easier pitch, vertical speed, and airspeed adjustments. Plus, for added safety, the panel’s advanced LVL mode button commands automatic recovery from steep or unusual attitudes — enabling the autopilot to return your aircraft to straight-and-level flight. Installation of the system is simple and straightforward, with industry-standard servo mounting kits available — as well as airframe-specific versions for the popular Van’s RV series (RV-4/6/7/8/9/10 models).

G3X Autopilot Components

GMC 305 Control Panel- A separate autopilot control panel for dedicated mode selection, as well as access to additional autopilot modes including Indicated Airspeed Hold, Level Recovery, and Yaw Damper.

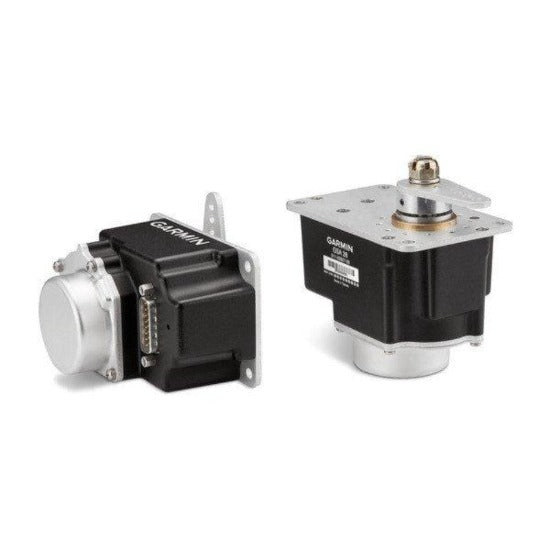

Single-axis-Configured with 1 GSA 28 integrated servo for roll only autopilot*

Dual-axis-Configured with 2 GSA 28 integrated servo units for pitch and roll autopilot*

Servo Install Kit Sizes & Options:

011-02952-10 RV-6 Roll Servo Install Kit              $75

011-02952-12 RV-7/8/10 Roll Servo Install Kit    $75

011-02952-13 RV-9 Roll Servo Install Kit              $75

011-02952-14 RV-6/7/9 Pitch Servo Install Kit    $75

011-02952-15 RV-10 Pitch Servo Install Kit         $75

011-02952-01 Generic Servo Install Kit                $75


Advanced Autopilot Capabilities for Your Airplane

  • Integrates with G3X Touch™ flight displays and/or G5 electronic flight instruments, based on GFC™ 700 technology found on thousands of aircraft
  • Brushless DC servo motors enable crisp responses and a smooth ride while also minimizing the control system friction while hand-flying the aircraft
  • Available in 1-, 2- or 3-axis configurations with easy-to-install GSA 28 “smart” servos
  • Includes Garmin ESP-X™ (Electronic Stability and Protection), which provides assistance in maintaining stable flight while hand-flying the aircraft
  • Adds overspeed and underspeed protection to automatically increase or decrease pitch attitude when aircraft exceeds built-in parameters while the autopilot is engaged or hand-flying

It’s easy to add full autopilot capability to your experimental or light sport aircraft equipped with G5 electronic flight instruments or a G3X Touch flight display. Both allow you to give your system a range of autopilot capabilities similar to those provided by our high-end GFC 700 systems found on thousands of certified aircraft.

Smart Servos, Easy Installation

All it takes is the addition of our affordable GSA 28 “smart” servos. You have the option to purchase a 1-, 2- or 3-axis configuration (roll servo only, pitch+roll or pitch+roll+yaw) to add the level of capability you want. Even better, the Garmin experimental autopilot system includes automatic trim functionality and automatic speed scheduling at no additional cost. And all of these advanced functions can be accessed directly from your G3X Touch display or separate GMC 305 or GMC 507 autopilot controllers. Installation of the system is simple and straightforward — with industry-standard servo mounting kits available as well as airframe-specific versions for Van’s RV series (includes RV-4/6/7/8/9/10 models).

Dedicated Mode Control

Optional GMC 305 or GMC 507 control panels¹ offer added redundancy and convenience with paired G3X Touch flight displays. With GMC 305, dedicated autopilot mode buttons allow for quick and easy access to autopilot modes, while an intuitive control wheel allows easier pitch, vertical speed and airspeed adjustments. Better still, GMC 507 adds dedicated knobs for altitude and heading selection. Plus, both panels have the additional safety feature of an advanced LVL mode button, which commands the autopilot to help restore the aircraft to straight-and-level flight.

Garmin ESP-X Comes Standard

With installation of our autopilot system, you’ll also obtain Garmin ESP-X to provide assistance in maintaining the aircraft in stable flight. When you exceed user-selected pitch, roll or airspeed limitations while hand-flying the aircraft, ESP-X provides the appropriate corrective forces on the flight controls to lessen the aircraft’s pitch attitude or bank angle — and that correcting force grows stronger as those exceedances increase. In addition, you’ll see visual cues on the G3X Touch display indicating that ESP-X is engaged; yellow chevrons provide visual pitch guidance, and configurable roll-limit indicators show where ESP-X engages to provide bank guidance.

As you take corrective action, ESP-X fades and turns off when you return to normal flight. Conversely, if the system activates for more than 15 seconds, e.g., if you become incapacitated, the autopilot engages with the flight director in level mode, bringing the aircraft to level flight until you command otherwise. While Garmin ESP-X will not recover an aircraft in all inflight situations, the system does provide your experimental and light sport aircraft with an extra safety feature.

More Safety Features. More Protection Potential.

But ESP-X goes beyond providing pitch and bank envelope protection to also offer high- and low-airspeed protection. In a high-airspeed situation while hand-flying the aircraft, ESP-X engages the autopilot servos to increase your pitch attitude, while built-in parameters further prevent the aircraft from exceeding G-limit load factors. In low-airspeed situations while hand-flying the aircraft, ESP-X engages to provide a gentle pitch-down force to reduce the likelihood of a stall. Both overspeed and underspeed protection also work while the autopilot is engaged should an aircraft performance limitation be reached from a pilot-provided autopilot command. For example, if the pilot sets an aggressive climb the aircraft cannot perform, underspeed protection will limit the pitch attitude to help prevent a stall from occurring. In addition, pitch, roll and airspeed envelope protection parameters are all customizable, and for flight training or aerobatics, you can easily inhibit ESP-X within the automatic flight control system menu of G3X Touch or with an optional switch in the panel. And in emergency engine power loss situations, the autopilot also supports the Smart Glide™ engine-out navigation capabilities offered by G3X Touch flight displays or GTN™ Xi navigators.

¹Required with stand-alone G5 electronic flight instrument installations
