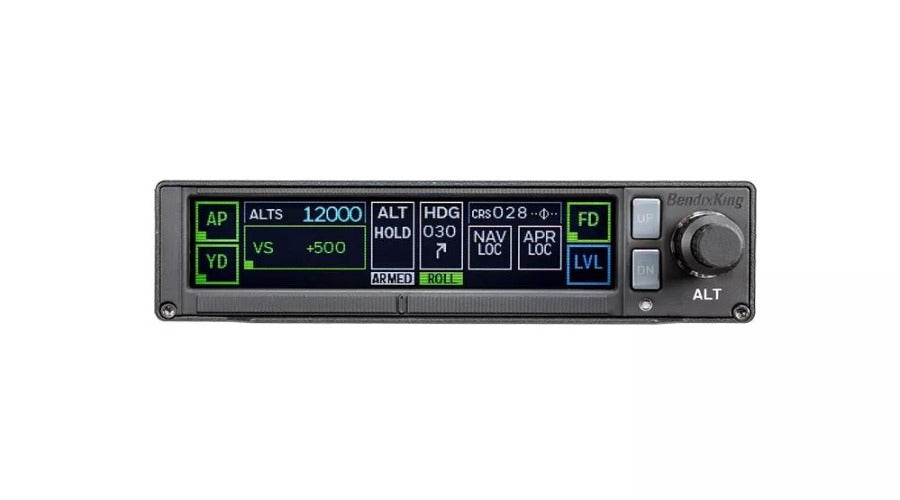

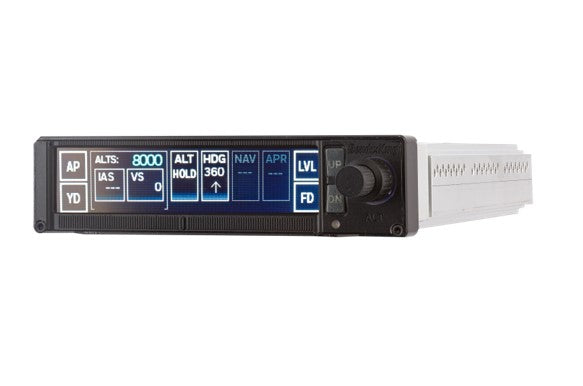

KFC 230 AeroCruze

VASTLY EXPANDED FUNCTIONS

Full 3-axis autopilot -Automatic wing leveling corrects unusual attitudes -Coupled approaches -Roll steering -Altitude pre-select -Precise turns to capture heading or approach even in high winds -Drives flight director bars -NAV, VOR, ILS, GPS.

Only touchscreen autopilot available in the market -Mode annunciation so you know what the autopilot is doing -Dedicated knobs and buttons for frequently used functions.

$9,995 MSRP -Includes altitude pre-select -Yaw damper available separately -Includes brand new 2-year warranty on your existing servos -Reuse existing servos and wiring to minimize installation costs and reduce downtime from 3 weeks to 1 week.

Interfaces

• NAV VOR/ILS/GPS sources can be interfaced via digital data bus or analog
• AirData input provided through digital data bus
• HSI interfaces can be digital data bus or analog using KI 525A compatible legacy interface
• Full 2-year system warranty

STC'd for the following aircraft:

Beech: A36, A36TC, B36TC, F33A

Piper: PA-32-301, PA-32-301T, PA-32R-3-1(SP), PA-32R-301(HP), PA-32R-301T, PA-46-310P, PA-46-350P, PA-34-200T, PA-34-220T

Mooney: M20J, M20K, M20L, M20M, M20R, M20S

Socata: TB10, TB20

Aerostar: PA-60-700P (Aerostar 700P)

Features

• Altitude pre-select/alerter
• GPS/ILS/VOR tracking and approaches
• GPS Roll Steering (GPSS), VS, IAS
• 2-axis is standard
• 3-axis available with optional yaw damper
• Slide-in replacement for KFC 150
• Computer is remote for KFC 200/250 replacements
• Glove-friendly, color LCD touch screen
• Dedicated controls for frequent tasks
• Attitude input from AeroFlight (KI 300) primary attitude indicator or another approved source
• Interfaces
• NAV VOR/ILS/GPS sources can be interfaced via digital data bus or analog
• AirData input provided through digital data bus
• HSI interfaces can be digital data bus or analog using KI 525A compatible legacy interface
• Full 2-year system warranty

Specifications

• 6.3x1.6x11.6 in, (16.0x4.2x28.6 cm)
• 2.6 lbs (1.18kg)
• -20°C to +55°C (-4°F to +131°F)
• Operating Altitude: 35,000 ft
• 14 and 28 VDC systems (9-33VDC)
• Power Consumption 2.4A @ 14VDC, 1.2A @ 28VDC

Certifications

• TSO C-198
• Environmental: RTCA/DO-160G
• Software: RTCA/DO-178 Level B
