BENDIXKING

BendixKing KI-525A HSI Indicator (Pre-owned)

Part No: 066-3046-07

$2,195.00
Shipping calculated at checkout.
DESCRIPTION

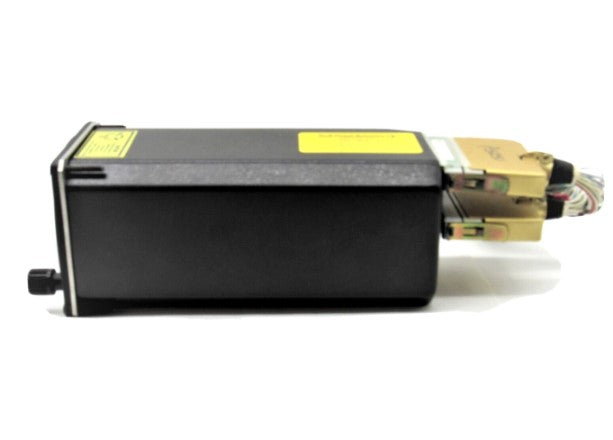

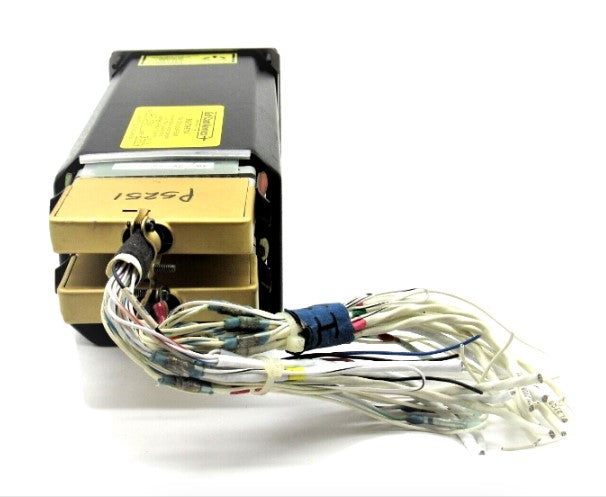

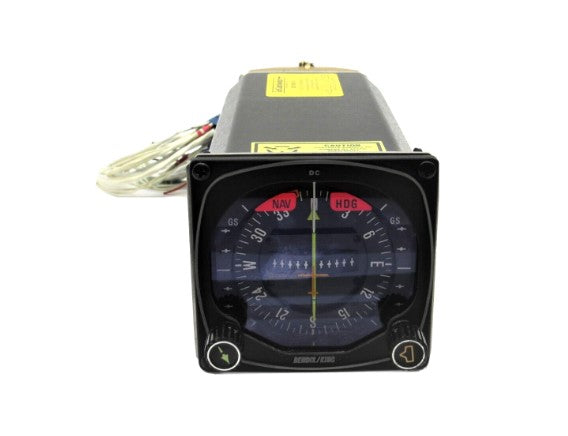

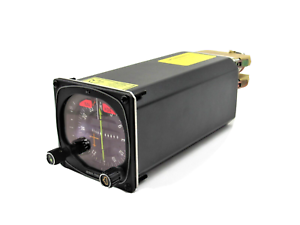

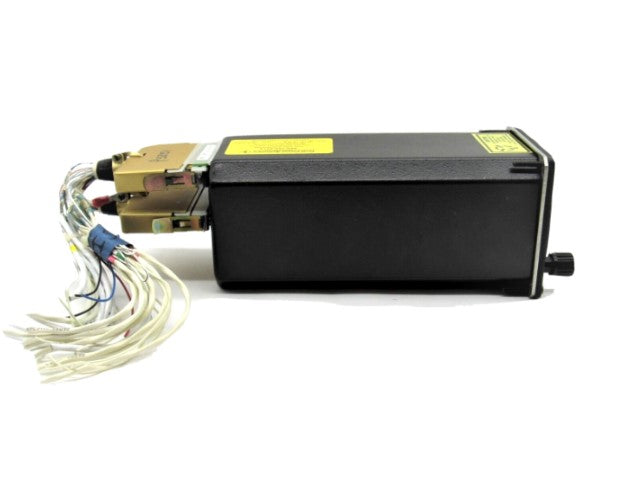

BendixKing KI-525A HSI Indicator

With bootstrap, 30 or 400 Hz, glideslope damping, black bezel

FEATURES

  • Pictorial Navigation Indication used in the KCS-55A compass system which also includes KG-102A Directional Gyro, KMT-112 Magnetic Azimuth Transmitter, and KA-51B Slaving Accessory
  • Provides a pictorial display of the horizontal navigation situation and also provides manual controls for course and heading datum selection
  • Provides outputs for autopilot or flight director, VOR receivers, and additional compass loads
  • Combines Magnetic Heading and course information from VOR/LOC, GPS, Loran, or RNAV
  • Includes dual glideslope pointers which are in view only during an ILS approach
  • Can be operated at 14 or 28VDC
  • Internally lighted
  • Models available with bootstrap heading synchro to provide source of slaved heading information (see table below)
  • Models available that are capable of operating at either 30Hz or 400Hz (see table below)
  • Models available with glideslope needle damping for use in high vibration environments such as helicopter (see table below)
  • Models available with 5 volt lighting (see table below)
  • Models available with black or gray face (see table below)
  • Model available with night vision goggle capability
  • TSO'd



SPECIFICATIONS
SIZE: 3.375"W x 3.550"H x 7.305"L WEIGHT: 3.94 lbs.
TEMPERATURE RANGE: -30 to +55C (operating) TSO COMPLIANCE: RTCA Env. Cat. DAMAAAXXXXXX
