Trig Avionics Limited

TN72 GPS Position Source Receiver

Part No:

$445.00
Shipping calculated at checkout.
DESCRIPTION

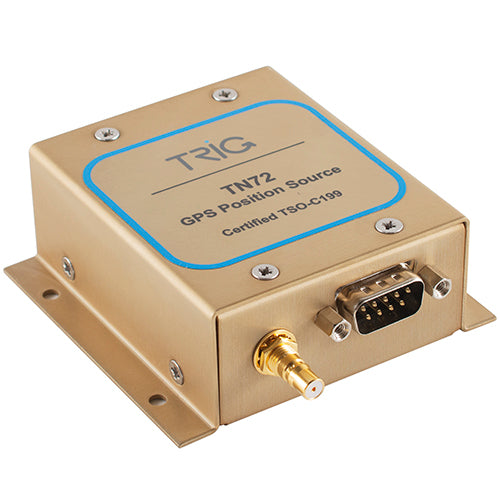

TN72 GPS Position Source Receiver

The highly affordable TN72 GPS Position Source is the best way for light-sport, experimental, and home-built aircraft to meet the 2020 ADS-B mandate. When used in combination with a TT22 transponder (sold separately), the TN72 meets FAR 91.227 to allow flight in 2020 rule airspace. When flying in busy skies, adding a TN72 will reduce the risk of collision and improve flight safety. Also, it will trigger a full traffic service from ADS-B ground stations when ADS-B In is used.

Features
  • Simple ADS-B Out upgrade to Trig transponders
  • Suitable for experimental, light-sport, and home-built aircraft
  • Ideal for experimental gliders — allowing flight in 2020 rule airspace
  • Enables live tracking of aircraft with suitable ADS-B In equipment
  • Triggers traffic information services (TIS-B only available in U.S.)
  • Two year warranty from date of install, U.S. based technical support
Specifications


Weight:
3.8 oz

Dimensions:
1.2 x 3.6 x 2.5 in

Type:
TABS GNSS

Supply Voltage:
11 VDC – 33 VDC

Typical Current Consumption:
0.1 amp @ 14 volts

Operating Temperature:
-40°C to 70°C

Connector:
GPS (power, ground and GPS data): nine-way, D-type
Antenna: 5-volt phantom power, QMA male

Certification:
TSO-C199 Class B

Compliance:
DO-160G
