DYNON AVIONICS

Dynon EMS, FlightDEK, SkyView Engine Sensor Kits

Part No: 103916-000

$1,125.00
Shipping calculated at checkout.
Engine Make: Lycoming/Continental/Superior 4-Cyl Carbureted
DESCRIPTION

Dynon EMS, FlightDEK, SkyView Engine Sensor Kits

Engine sensor kits for Dynon EMS, FlightDEK and SkyView systems. Kits are shown below with the appropriate sensors and harnesses provided.

EMSKIT-L6C

  • 6 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 6 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 1 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100468-000, Carburetor Air Temperature, ¼-28 UNF, -50° to 150°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-002, EGT/CHT, 6 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-L6F

  • 6 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 6 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 2 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-002, EGT/CHT, 6 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

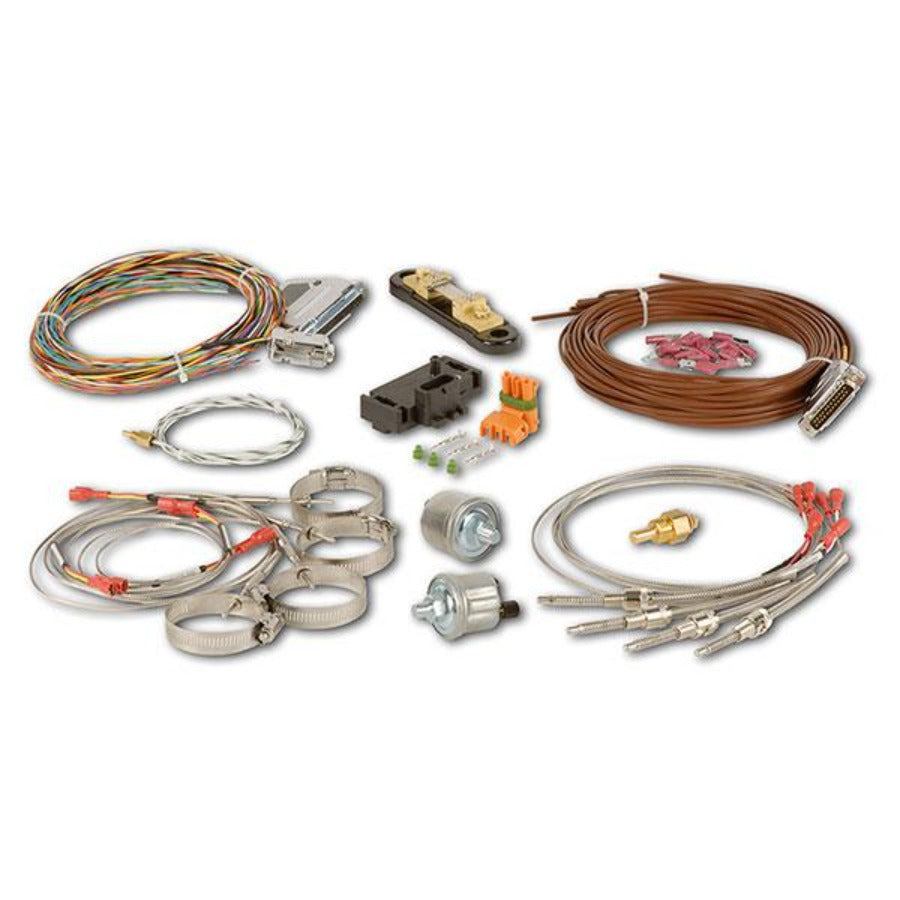

EMSKIT-L4C

  • 4 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 4 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 2 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-001, EGT/CHT, 4 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-L4F

  • 4 x 100405-000, EGT, EGT, 1.00-2.25” Hose Clamp
  • 4 x 100404-000, CHT, Adjustable Bayonet, 3/8-24 UNF
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 2 x 103757-000, Oil/Fuel/Coolant/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100409-001, Oil Temperature, 5/8-18 UNF, 100-240°F
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-001, EGT/CHT, 4 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-RTX

  • 2 x 100405-001, EGT, 0.75-1.25” Hose Clamp
  • 1 x 100434-000, Manifold Pressure, 0 – 60” Hg, 1/8” hose
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-004, EGT, 2 cylinder, 6’ long
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-RTXiS

  • 1 x 103757-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 150 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-J22

  • 4 x 100405-002, EGT, 1.00-1.75” Hose Clamp
  • 4 x 100578-000, CHT, Ring Terminal, 12 mm
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-001, EGT/CHT, 4 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long

EMSKIT-J33

  • 6 x 100405-002, EGT, 1.00-1.75” Hose Clamp
  • 6 x 100578-000, CHT, Ring Terminal, 12 mm
  • 1 x 103755-000, Fuel/Fluid Pressure Sender - Kavlico v2, 1/8-27 NPT, 15 PSI
  • 1 x 100412-000, Amps Shunt, 0-60 Amps
  • 1 x 100399-002, EGT/CHT, 6 cylinder, 6’ long harness
  • 1 x 100399-000, Engine Sensor Main Wire Harness, 6‘ long
