ASPEN AVIONICS
DESCRIPTION

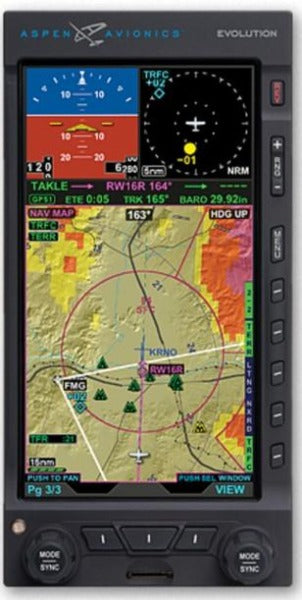

1000 MFD MAX Features
New vibrant colors with the latest aviation glass
Higher reliability and faster refresh rate rates
Chart and countdown timers
Height above ground level (AGL) on navigation and terrain maps
METAR flags on navigation map

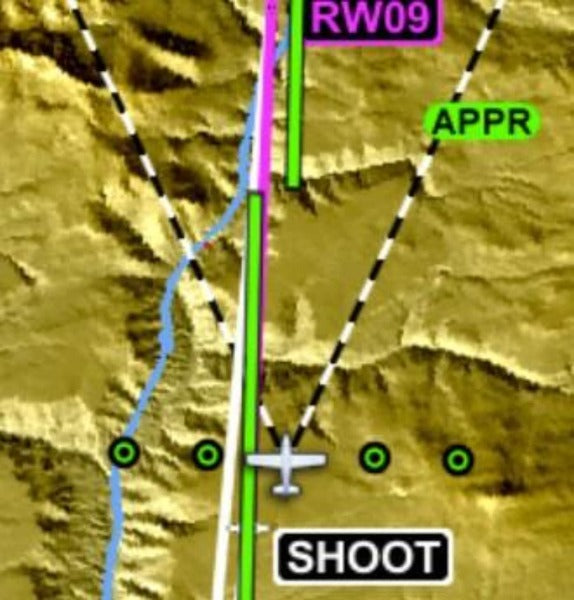

Sectional-style moving maps with hazard awareness overlays
Customizable screen layouts
Charts and geo-referenced airport diagrams*

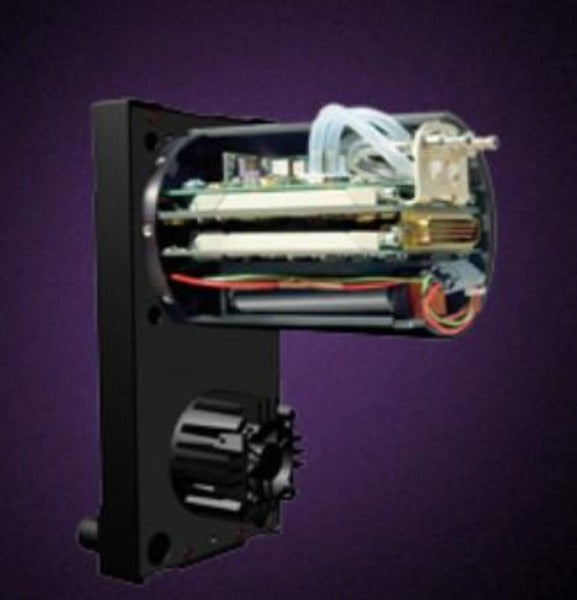

Built-in backup battery

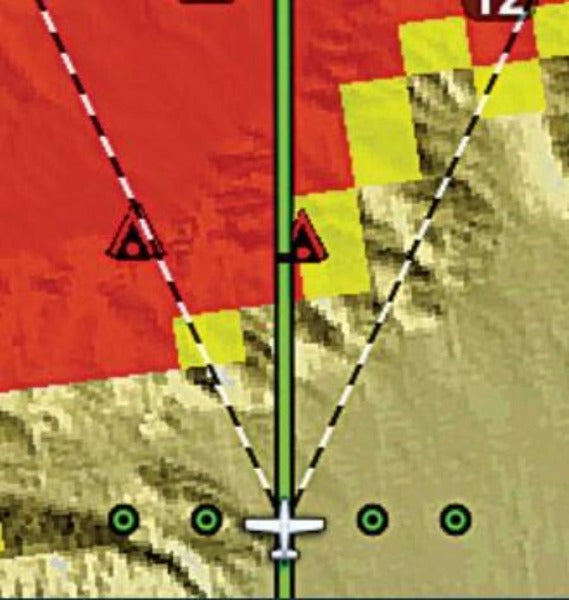

Built-in terrain awareness
Traffic overlay on map via interface**
Weather
WX500 Stormscope interface
Datalink weather***
* Emergency GPS available with optional upgrade
** Requires ARINC 735A compatible traffic system
*** Requires Aspen EWR50 Weather Receiver or equivalent
Features
Evolution 1000 MFD Features:

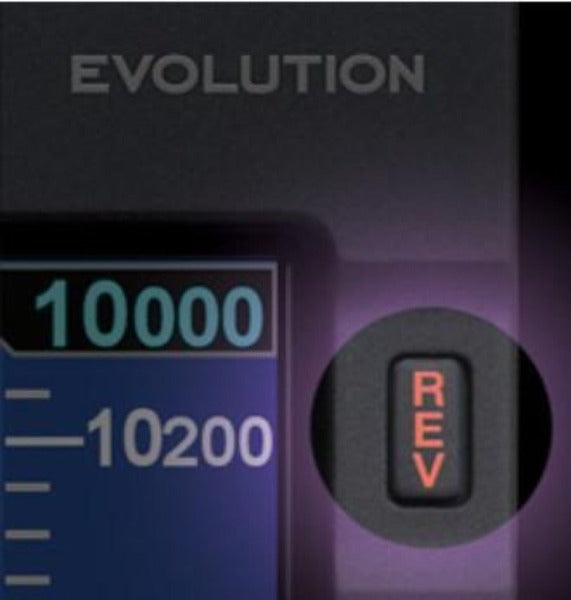

Duplicate sensor set providing full PFD redundancy
May eliminate requirement for backup instruments
Sectional-style moving maps with hazard awareness overlays
Charts and geo-referenced airport diagrams(1)
Customizable screen layouts
Built-in backup battery and emergency GPS(2)
Evolution Hazard Awareness
Built-in terrain awareness
Traffic overlay on map via interface(3)
Weather
WX500 Stormscope interface
Datalink weather(4)
Hi-res NEXRAD radar
AIRMETs
Radar coverage map
SIGMETs
Precipitation type (at surface) TFRs
Echo tops Storm weather tracks
Cloud tops Lightning
Winds aloft (by altitude) METARs
Satellite mosaic (by altitude)
TAFs
Specifications
General Specifications:
Overall Dimensions: 3.50” W x 7.00”H x 4.15”D
Weight: 2.9 lbs. with mounting bracket
Display Type: 6.0” Diagonal TFT Active Matrix LCD
Display Resolution: 400x760
Display Backlight: High Intensity White LED
Display Colors: 32,768
Operational Specifications:
Operating Temp -20°C to +55°C
Storage Temp -55°C to +85°C
Max Operating Altitude (unpress.) 35,000 ft.
Cooling Integral Fan
Max Humidity 95% at 50°C
Input Voltage +8 to +32 Volts DC
Max Current 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
I/O Specifications:
ARINC 429 Inputs 5 Low Speed
ARINC 429 Outputs 1 Low Speed
RS-232 Inputs 5
RS-232 Outputs 3
Pitot / Static Quick Connect
Certification Specifications:
FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113
Software
RTCA DO-178B Level C
Environmental
RTCA DO-160E
