Guardian Avionics

AERO 551-101-002 Panel Mount CO Detector with Digital Display and Cabin Pressure

Part No: 75-8

$569.00
Shipping calculated at checkout.
Amazon American Express Apple Pay Bancontact Diners Club Discover Google Pay iDEAL Mastercard PayPal Shop Pay Visa
DESCRIPTION

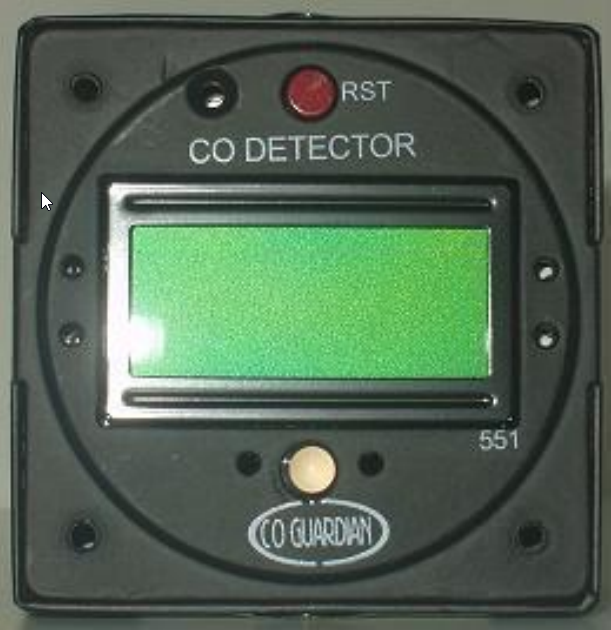

The Aero 551-101-002 Digital Carbon Monoxide (CO) detector is a panel mounted TSO Certified unit designed especially for use in both FAA certified aircraft and experimental aircraft. Designed to fit in, and replace a standard 2.25” (2 1/4”) standard instrument panel clock, the
AERO 551 gives you highly accurate and extremely fast CO detection and PPM readings within the cockpit on an easy-to-read LCD display.

The sensitive onboard CO sensor alarms when carbon monoxide levels measure 50 to 99 PPM over a 3-5 minute span or alarm immediately when CO levels reach above 99 PPM.

The Aero 551 is a valuable upgrade for any certificated aircraft that has a spare 2 1/4" instrument position available and requires only a few hours to install.

All Guardian Avionics CO Detectors feature a One (1) Year Limited Warranty and a 5-7 year TBO on the CO Sensor.

Specifications

  • Power usage less than 2 watts
  • Temperature range 0 °C to 50 °C
  • Humidity 5% to 95% (non-condensating)
  • Circuit breaker 2 amps
  • Interface: RS-232
  • Size: fits standard 2/14 inch round panel cut-out and is 2 1/2 inch deep
  • Weight 7.5 oz.
  • Sensor tested to 25,000 feet
  • 15 pin connector

Approved PFD, MFD, and Engine Monitor Products that will display the Aero 551 data:

  • Garmin: Garmin G3X, Garmin G3X Touch, Garmin GNS 480, Garmin G900
  • J.P. Instruments (JPI): EDM 730, EDM 830, EDM 900 Primary, EDM 900 Experimental, EDM 930 Primary, EDM 930 Experimental, EDM 960 Twin
  • Electronics Instruments (EI): MVP50P, MVP-50T, CGR-30P
  • Advanced Flight System: AF2500/3500/4500/5000/5400/5500/5600/5800
  • Grand Rapids Technologies (GRT): Sports SX, Horizon HX, and HXr EFIS Systems
  • Ultra Electronics: AuRACLE CRM 2120
  • MGL Avionics: XTreme EFIS
