CO GUARDIAN

iPad co2 Detector - AERO-454-201-001B

Part No: 454-201-011

$995.00
Shipping calculated at checkout.
DESCRIPTION

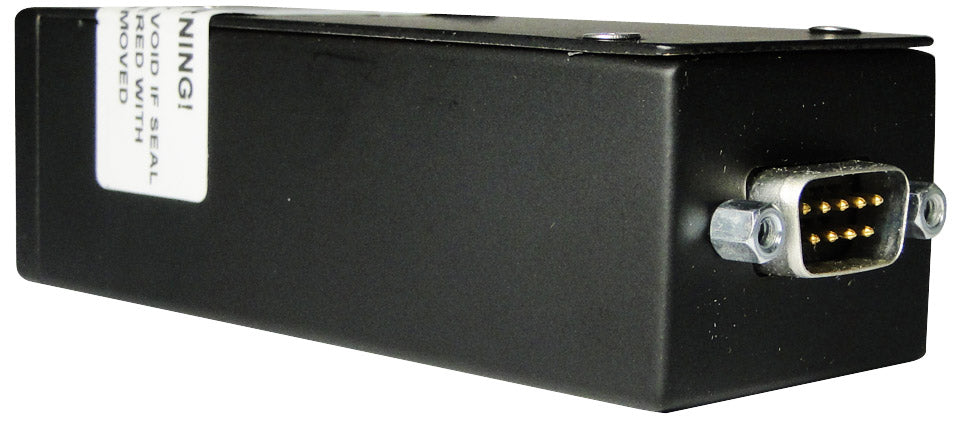

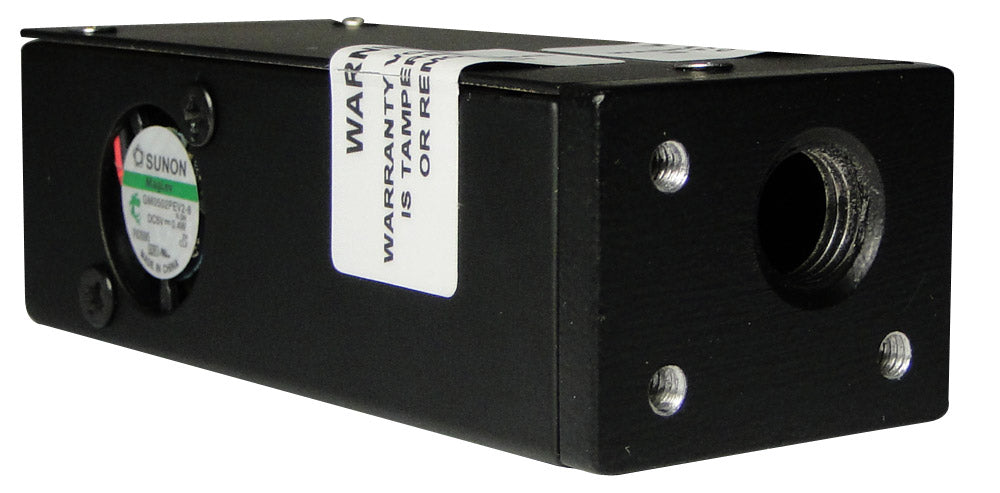

iPad co2 Detector - AERO-454-201-001B

iPad co2 Detector with touch display from Guardian Avionics. AERO-454 integrates with Garmin GPS units and then can transmit CO data and flight data by Bluetooth to up to four iPad or Android devices.

Aero 452-201-011 is the first TSO certified remote-mountable Carbon Monoxide detector for use in General Aviation. This unit is a derivative of Aero 452 (Panel Mount). This unit comes standard with remote re-set switch and a remote light and can be installed behind a panel.

This unit is pre-wired for connecting to an external annunciator warning lamp on your panel. Different light models can be purchased separately.


 BLUETOOTH enabled: GPS data transmitted to tablets supported by Apple iOS.
Power Usage: Less than 1 Watt
Temp Range: -20 deg C to 70 deg C
Dimensions: 4.5” L X 1.625”W in x 1.25” H
Humidity range: 5 % to 95 % RH (non-condensating)
Circuit Breaker: 2 Amp
Design Meets TSO-C48a
Weight: 4 Oz
CO Sensor Tested to 25,000 Ft and no effect to 40,000 Ft
Tone generator for headsets
RS-232 output
Internal fan for optimum CO sensing
Units are 100 % tested

Specifications
  • Input Power: 14/28 V DC
    CO Level: 10 - 999 PPM
    BLUETOOTH enabled: GPS data transmitted to tablets supported by Apple iOS.
    Power Usage: Less than 1 Watt
    Temp Range: -20 °C to 70 °C
    Dimensions: 4.5" L X 1.625"W in x 1.25" H
    Humidity range: 5 % to 95 % RH (non-condensating)
    Circuit Breaker: 2 Amp
    Design Meets TSO-C48a
    Weight: 4 Oz
    CO Sensor Tested to 25,000 Ft and no effect to 40,000 Ft
    Tone generator for headsets
    RS-232 output
    Internal fan for optimum CO sensing
    Units are100 % tested

    Install Manual

    User Manual

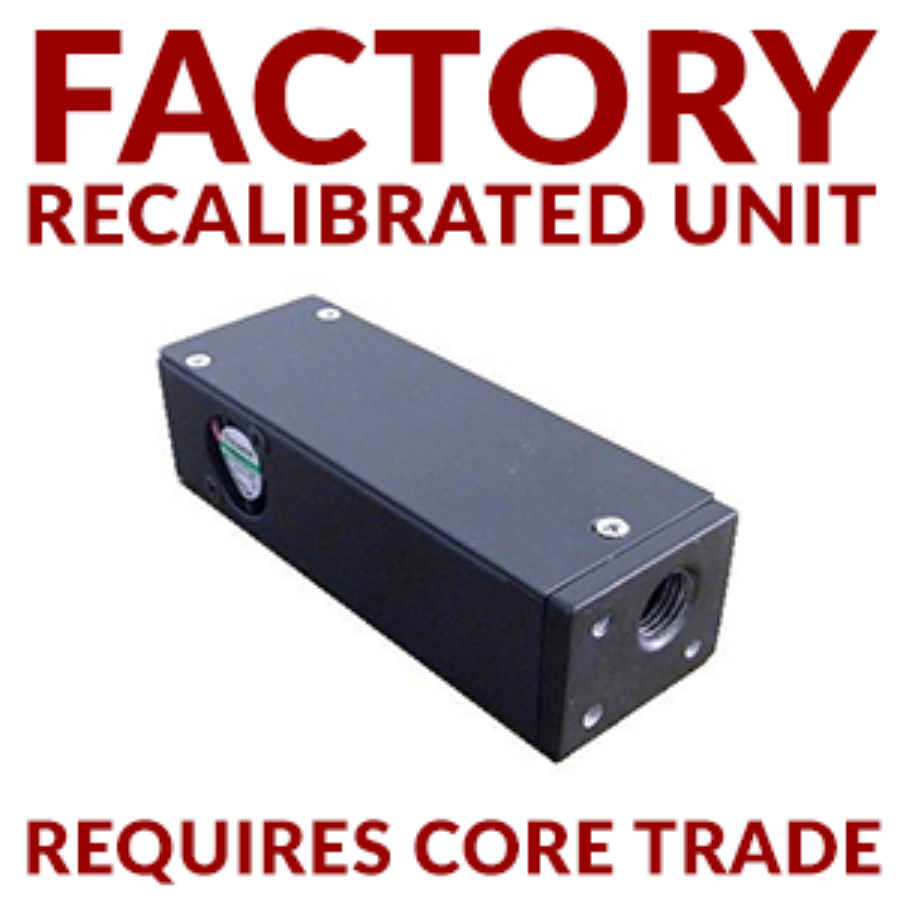

    RECALIBRATION

    The CO sensors in our detectors have a 5 to 7 year life under ideal conditions. Even if they are protected from all external contaminants, we strongly recommend re-calibration of the units after 5 years. The CO sensor is extremely sensitive and certain substances in the ambient air may change its characteristics and affect reliability. We will re-calibrate any of your CO Guardian models for a flat fee ( Please contact CO Guardian for pricing information). This service includes the installation of a new CO sensor, re-calibration of the unit and a complete system check. In addition, you will receive a fresh 12 month warranty.
