COMANT
DESCRIPTION

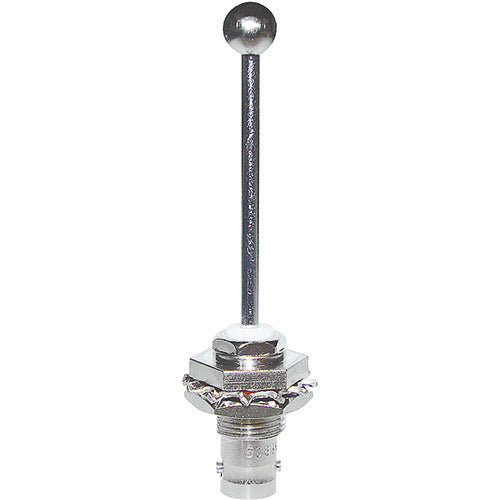

The AV-22 is a rod-style transponder antenna which utilizes a BNC connector that allows for a smaller mounting hole. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 feet. It has a drag force of 0.41 lbs @ 250 mph.
Features
- Frequency covered: 1030-1090 MHz
- Utilizes a BNC connector
- Direct replacement for the CI 101
Specifications
Max. Weight:
1 oz
Max. Height:
3 in
Frequency:
1030-1090 MHz
Impedance:
50Ω Nominal
VSWR:
1.3:1 Maximum
Polarization:
Vertical
Pattern:
Omni-Directional
Connector:
BNC Female
RF Power Capacity:
1 KW Peak Pulse @ 1% Duty Cycle
FAA Approval:
TSO-C74c
