AV-61 L-Band & Transponder Antenna | 960 – 1,220 MHz, Gloss White

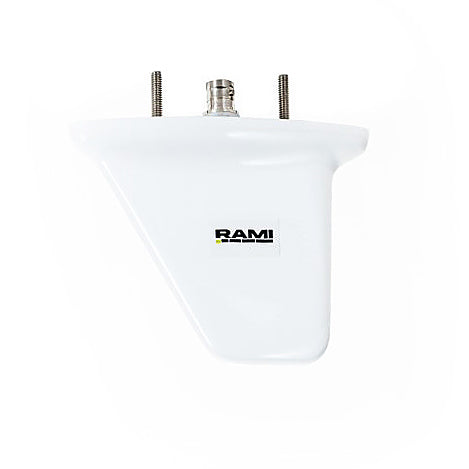

The AV-61 Aviation L-Band and Transponder Antenna is a broadband blade type antenna capable of operating on DME, transponder, ATCRBS/Modes, TCAS & TAS frequencies. This antenna is designed to operation up to 350 mph and 50,000 feet and over the frequency range from 960 MHz to 1,220 MHz. The anacrylonitrile-styrene-acrylic (ASA) shell provides durability while its white color allows for maximum performance without losses due to color pigments or unseen dirt.
Supplied with the AV-61 antenna is a cellular neoprene mounting pad and hardware.
- 960 MHz – 1,220 MHz frequency range
- 350 mph operating speed
- Operates up to 50,000 feet
- 0.09 lb drag force
- Designed as a direct replacement for Honeywell's KA16
0.2 lb, maximum
DME, Transponder, ATCRBS/MODES, TCAS & TAS
960 MHz – 1,220 MHz
RF Power Capacity:
TSO-C66c, TSO-C74c, TSO-C112e, TSO-C118a, TSO-C147a
