ST-360

Altitude Selector/Alerter

The ST-360 is a unique system which significantly lowers pilot workload. It provides pre-selected altitude capture, digital vertical speed input, and aural and visual alerting at selected altitudes.

Available as an option for Genesys autopilot systems with altitude hold and vertical speed control.

ST-360 benefits:

• Enhanced Autopilot Functionality: Take your autopilot to a new level by adding two work-saving functions.
• Reduced Pilot Workload: Easily set and automatically capture pre-selected vertical speed and desired altitude.
• Intuitive Digital Display: Easy to input and easy to read.
• Compact Footprint: Save valuable panel space while adding powerful capabilities.



• Digital vertical speed select for climb or descent
• Pre-select and capture altitude; with visual and aural alerts
• Alerts if aircraft departs selected altitude
• Selectable DH (decision height) or MDA (minimum descent altitude), with visual and aural alerts
• Monitor outputs of altitude encoder
• Automatic vertical speed reduction prior to altitude capture

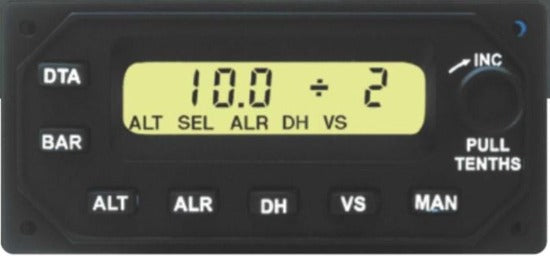

• Panel mounted programmer/annunciator with LCD display
• Completely case-contained
• Requires input from aircraft’s altitude encoder

• Specifications
• Panel mounted programmer/annunciator with LCD display
• Completely case-contained
• Requires input from aircraft’s altitude encoder
• Power required:14/28 VDC
• Weight:1.25 lbs.
• Dimensions:1.6” x 3.42” x 6.75”
• Approved to TSO C9c
• Available as an option for Genesys Aerosystems autopilot systems with altitude hold and vertical speed control
