R.C. ALLEN
DESCRIPTION

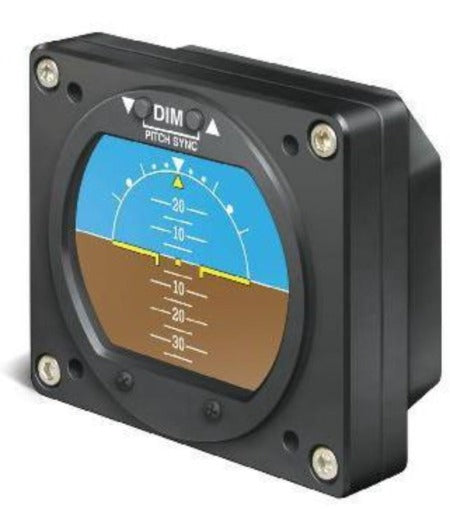

RC Allen Digital Gyro For Aircraft
Introducing the latest version of the popular RCA2600Digital Attitude Indicator. The new compact design and updated processors make this the most versatile and dependable Digital AI on the market today. The 3-inch RCA2600-3and the 2-inch RCA2600-2models are FAA Certifiedand are designed as a direct replacement for any Electric Attitude Gyro.
The RCA2600has the look and feel of a traditional gyro without the clutter of additional data on the screen. You will like the “gyro-like” responsiveness in pitch and roll that other digital AI’s just can’t match. We designed the new RCA2600to handle the high vibration environment found on helicopters and yet, their light weight is perfect for soaring. With no moving parts to wear out, this instrument will provide years of reliable service - that’s why we include a full two-year warranty!
Features
- PITCH SYNC OPTION
- 360 DEGREES OF PITCH AND ROLL
- MULTI-VOLT OPERATION (9 TO 32 VOLTS)
- INCREASED VIBRATION RESISTANCE
- FITS STANDARD CUTOUT
- TOTALLY SELF-CONTAINED
- BRIGHT, HIGHLY VISIBLE LCD DISPLAY
- ALL DIGITAL - NO MOVING PARTS
- 3 AND 2 INCH MODELS AVAILABLE
- ADJUSTABLE BRIGHTNESS
- BLACK ANODIZED BEZEL
- LIGHTWEIGHT 2”= 4.5oz. & 3”= 6.5oz.
- FAA / EASA CERTIFIED
Specifications
| OPERATING VOLTAGE: | 9 to 32 VDC | STARTING CURRENT: | 9VDC: 0.18 to 0.22 Amps Max |
| RUNNING CURRENT: | 14VDC: 0.20 Amps Max; 28VDC: 0.18 Amps Max | CIRCUIT BREAKER SIZE: | 2 Amp |
| SETTLING ERROR: | 1° Max in Roll & Pitch | OPERATING TEMP: | -30° to +50° C |
| RCA2600-2 DIMENSIONS: | 2.764" W x 2.387" H x 6.010" L (w/out connector) | RCA2600-3 DIMENSIONS: | 3.39" W x 3.39" H x 6.50" L (w/out connector) |
| FAA SPEC: | TSO-C4c (*See Install Notice) | MOUNTING HARDWARE: | 6-32 screw - 0.5" plus panel thickness |
| MATING CONNECTOR: | MS3116E8-4S or equivalent | PINOUT: | A = GND, B = PWR, C = SPARE, D = SPARE |
