uAvionix AV-30-E Primary Flight Display for Experimental Aircraft
Part No: UAX-90051-01
$1,849.00
/
Shipping calculated at checkout.
DESCRIPTION
uAvionix AV-30-E Primary Flight Display for Experimental Aircraft
Cutting-Edge Technology Without the Cutting
AV-30e fits in your existing 3-inch instrument panel slot seamlessly. By mounting from behind, it preserves the “round dial” look and eliminates the need for cutting or replacing your panel.
Avoid Stalls
The AV-30e alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft's pitch, flight path, and G-loading.
Transponder Control
Travel beyond borders with tailBeaconX, the globally accepted, Aireon enabled, 1090/ES ADS-B Transponder. AV-30 paired with tailBeaconX allows you to easily set your mode and squawk while enabling additional functionality to AV-30.
Live Traffic on AV-30
Plug-in AV-Link to your AV-30 serial port, connect the AV-Link to your ADS-B receiver via Wi-Fi, and that's it.
| "Retro-Fit" Your Cockpit with a Digital Upgrade. Upgrade your legacy vacuum-driven instrument to digital precision attitude and directional gyro customizable display. uAvionix offers a downloadable simulator that allows you to directly explore the AV-30 functionality. Windows only. Download Here |
Features
Upgrade your legacy vacuum driven instruments to digital precision attitude and directional gyro customizable displays.
-

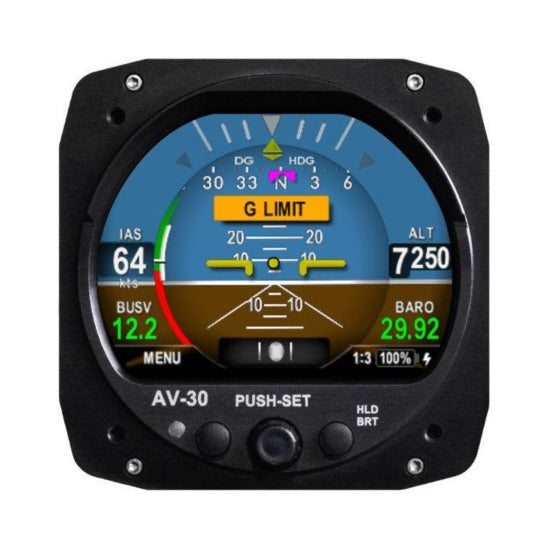

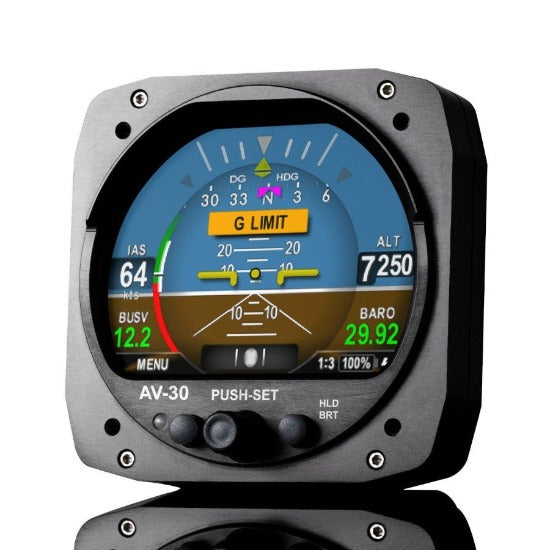

Primary Attitude
-
Primary Slip
-
Primary Direction Indication
-
Probeless Angle Of Attack
-
Indicated Airspeed (KTS/MPH)
-
Altitude / Vertical Trend / Alerter
-
+8 / -8 G-Meter
-
OAT / TAS / Density Altitude
-
Bus Voltage
-
GPS Navigational Data Overlay
-

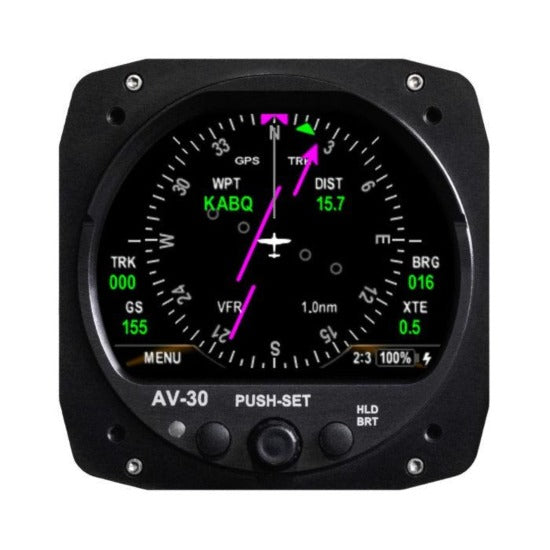

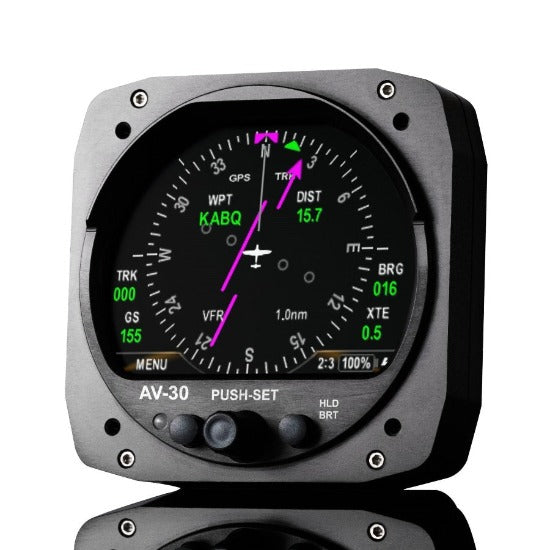

GPS HSI / 360 Rose / Arc Map Mode
-
Customizable Colors, Fonts, & Layout
-
Audio Alerts (AoA, G, Roll Limits)
-
2 Hr Typical Internal Battery Operation
Specifications
|
Specification |
Value |
|---|---|
|
Input Voltage Nominal |
+10 to +32 VDC |
|
Input Voltage Max |
+60 VDC |
|
Input Power Nominal |
6 Watts (0.5 Amps @ 12VDC) |
|
Input Power Max |
12 Watts (1.0 Amps @ 12VDC) |
|
Required Circuit Breaker |
2 Amp |
|
Operation on Battery |
2 Hours Typ @ 20°C / 30 Minutes Min @ -20C |
|
Physical Attributes |
|
|
Mounting Configuration |
3 1/8” Round Instrument Hole |
|
Dimensions wo/Connector |
3.38 x 3.38 x 1.6 Inches |
|
Weight |
0.50 Lbs. |
|

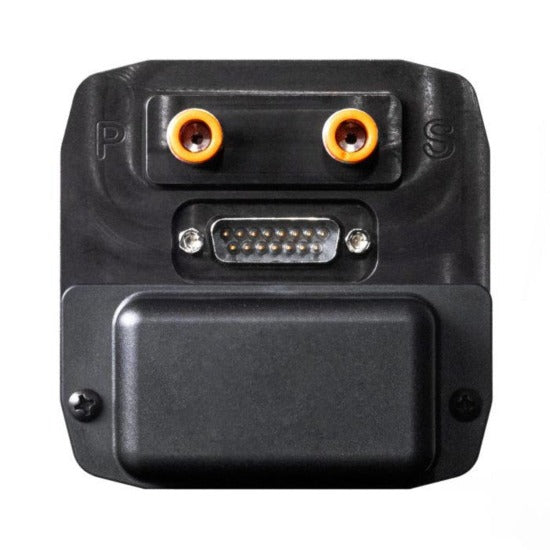

Electrical Connector |
15 Pin Male D-Sub |
|

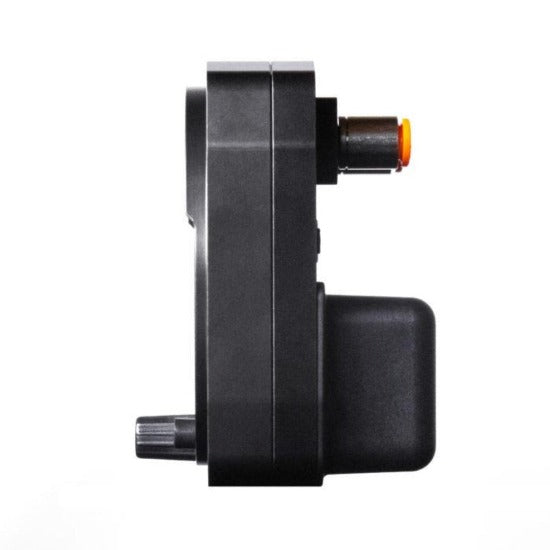

Pneumatic Connectors |
¼” OD Quick Connect |
|
Mounting |
(4X) #6-32 Machine Screws |
|
Case Material |
Billet Aluminum |
|
Environmental |
|
|
Operating Temp |
-20°C to +55°C |
|
Storage Temp (48 Hrs) |
-30°C to +80°C |
|
Humidity (48 Hrs) |
90% RH |
|
Display |
|
|
Diagonal Size |
3” Circular |
|
Contrast Ratio (Typical) |
500 |
|
Brightness (Typical) |
1000 cd/m2 |
|
Viewing Angle Left/Right |
60° |
|
Viewing Angle Up |
45° |
|
Viewing Angle Down |
10° |
|
Backlight Lifetime (Typical) |
50,000 Hrs |
