MAXPULSE MAXDIM
DESCRIPTION

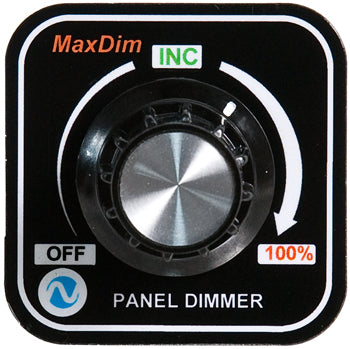

MaxDim Single Channel "A" Model
Specifications:
- 12-35 volts @ 12.5 Amps
- Spade Connectors
- Controlled Output:
- 0 to 12-35 VDC - 0 to 12.5 A
Capacity:
- 150 Watts @12 VDC
- 350 Watts @28 VDC
- 437 Watts @35 VDC
Features:
- Aircraft Lighting
- Comply to Cessna AD 93-24-15 about cockpit fires.
- Excellent control of Nulite instrument lighting
- Excellent LED control
- Smaller DC motors
- STC, PMA, RTCA/DO-160E SEC 21: RFE Qualified
- Instrument Panels
- Nulite dimmers
- UMA pre-inverter dimmer
- Avion Glare shield pre-inverter dimmer
- Boat Cruiser Cabins
- LED lit panels
- Hundreds of DC Lighting Control applications
- Assembled in the USA
Specifications:
- 12-35 VDC operation
- Install with Standard Supplied solderless Connectors
- Potentiometer Rotation: 270 degrees Rotational Life: 500K Turns
- Operating Temperature Range: -30 degrees C to +65 degrees C
- Internal temperature Protect: +85 degrees C
- Storage Temperature: -40 degrees C to +100 degrees C
- Maximum Internal Temperature: @12.5A +15 degrees C
- Enclosure Material: Bayer FR 110 Resin Meets UL 94
- Flame Rating: V-2 (0.03in) V-0 (0.059in) 5VB (0.098in) 5VA (0.13in)
- STC & PMA approved.
- Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
- One Year limited warranty
- Weight: 0.58 oz (16.6g)
- What's in the box?
- MaxDim unit, installation instructions, color coded terminals,
- reference panel label, STC printout for your logs, installation template, and knob.
