ASPEN AVIONICS
DESCRIPTION
**Unit Price $4,390. From $6,195 installed. This unit must be installed by Pacific Coast Avionics.

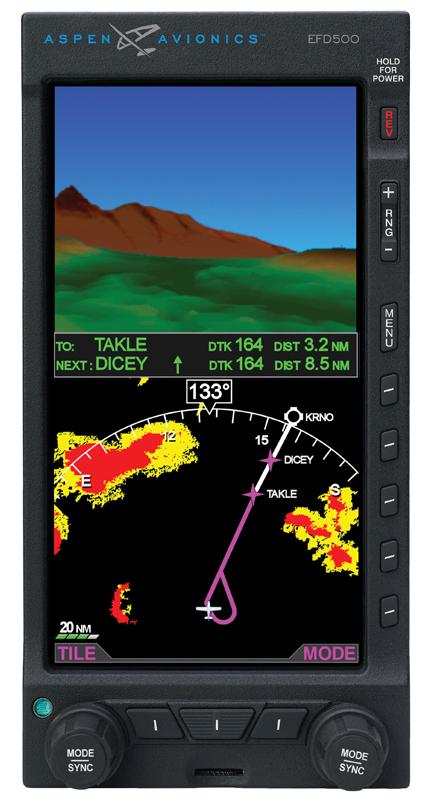

The EFD500 MFD provides the same great MFD features as the EFD1000 MFD at a lower price, by eliminating the ADAHRS sensor set (and the ability to serve as a PFD backup). It is ideal as a third tube to round out your glass cockpit six-pack replacement, and can be installed as a slave display to your EFD1000 MFD to make installation a snap.
Low Cost MFD Versatility
The Evolution 500 MFD (Multi-Function Display) provides the same great MFD features as the 1000 MFD at a lower price by eliminating the duplicate sensor set and the ability to serve as a PFD backup. It’s a perfect MFD solution for the pilot who wants a more affordable glass panel expansion when adding on to the PFD. It’s also ideal as a third display to round out your glass cockpit six-pack replacement.
500 MFD Features:
Sectional-style moving maps with hazard awareness overlays
Customizable screen layouts
Charts and geo-referenced airport diagrams(1)
Built-in backup battery
Built-in terrain awareness
Traffic overlay on map via interface(2)
Weather
WX500 Stormscope interface
Datalink weather(3)
Size: 3.5" x 7" x 4.15"
Weight: 2.6 lbs.
Features
- Vibrant colors with the latest aviation glass
- Higher reliability and faster refresh rates with the lates generation processors
- Chart and countdown timers
- Height above ground level (AGL) on navigation map and terrain maps
- METAR flags on navigation maps
- Section-style moving maps with hazard awareness overlays
- Customizable screen layouts
- Built-in backup battery
- Charts and geo-referenced airport diagrams
- Weather
- WX500 Stormscope interface
- Datalink weather
Specifications
General Specifications:
Overall Dimensions: 3.50” W x 7.00”H x 4.15”D
Weight: 2.9 lbs. with mounting bracket
Display Type: 6.0” Diagonal TFT Active Matrix LCD
Display Resolution: 400x760
Display Backlight: High Intensity White LED
Display Colors: 16M
Operational Specifications:
Operating Temp: -20°C to +55°C
Storage Temp: -55°C to +85°C
Max Operating Altitude: (unpress.) 35,000 ft.
Cooling: Integral Fan
Max Humidity: 95% at 50°C
Input Voltage: +8 to +32 Volts DC
Max Current: 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
I/O Specifications:
ARINC 429 Inputs: 5 Low Speed
ARINC 429 Outputs: 1 Low Speed
RS-232 Inputs: 5
RS-232 Outputs: 3
Pitot / Static: Quick Connect
Certification Specifications:
FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113
Software
RTCA DO-178B Level C
Environmental
RTCA DO-160E
