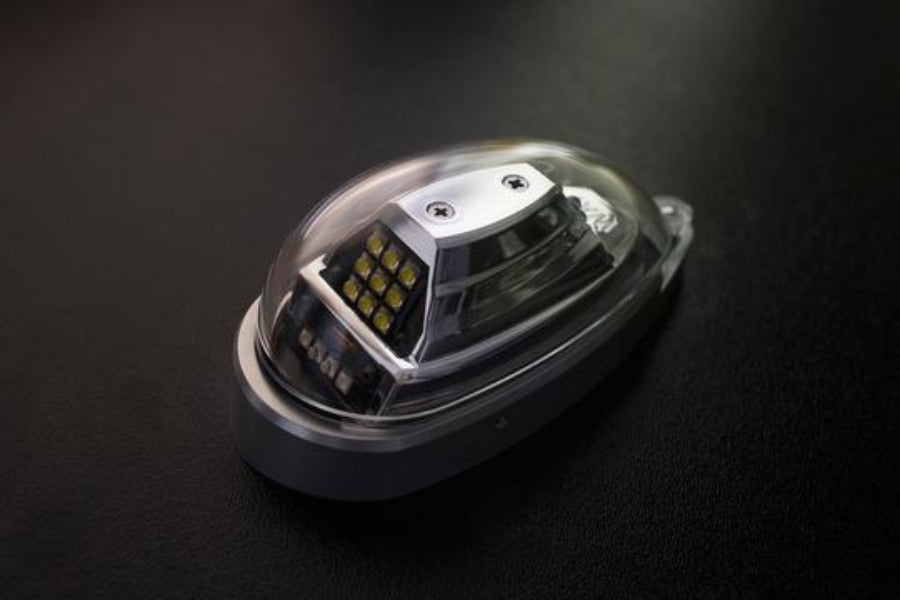

Orion 650 Series Forward Position / Anti-Collision Wingtip Lights

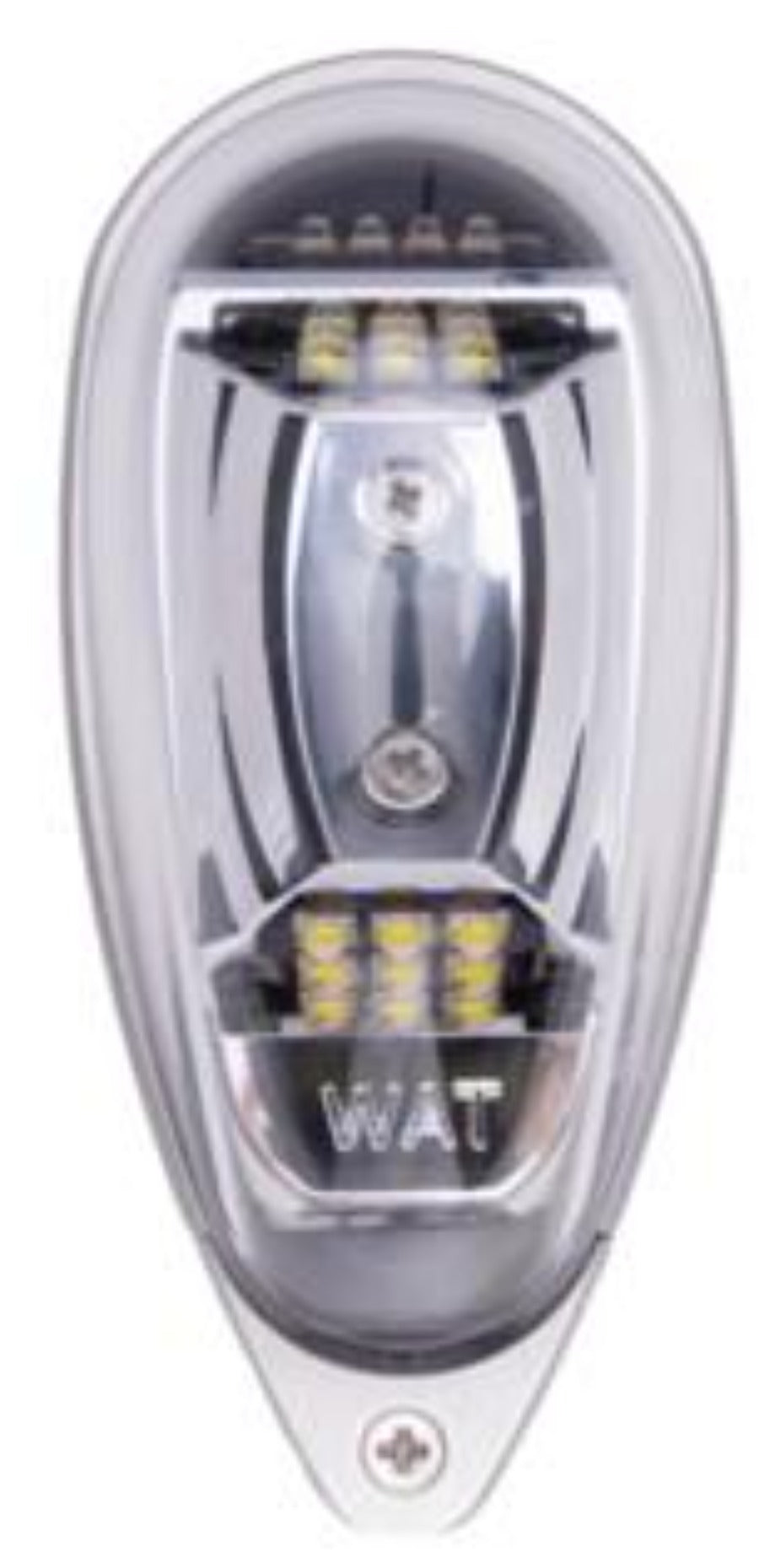

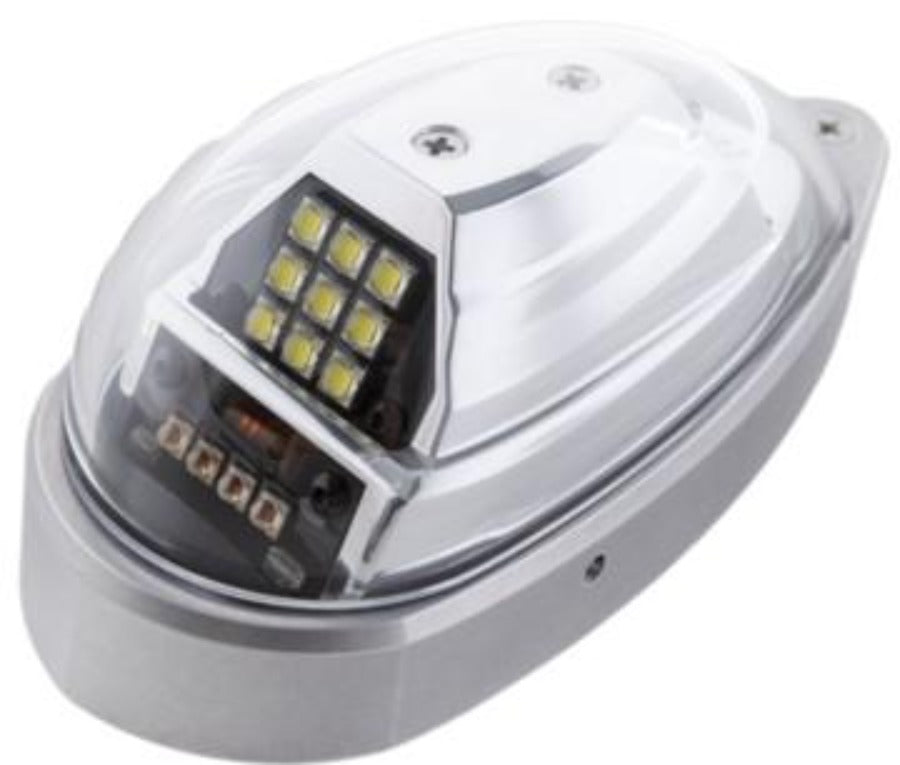

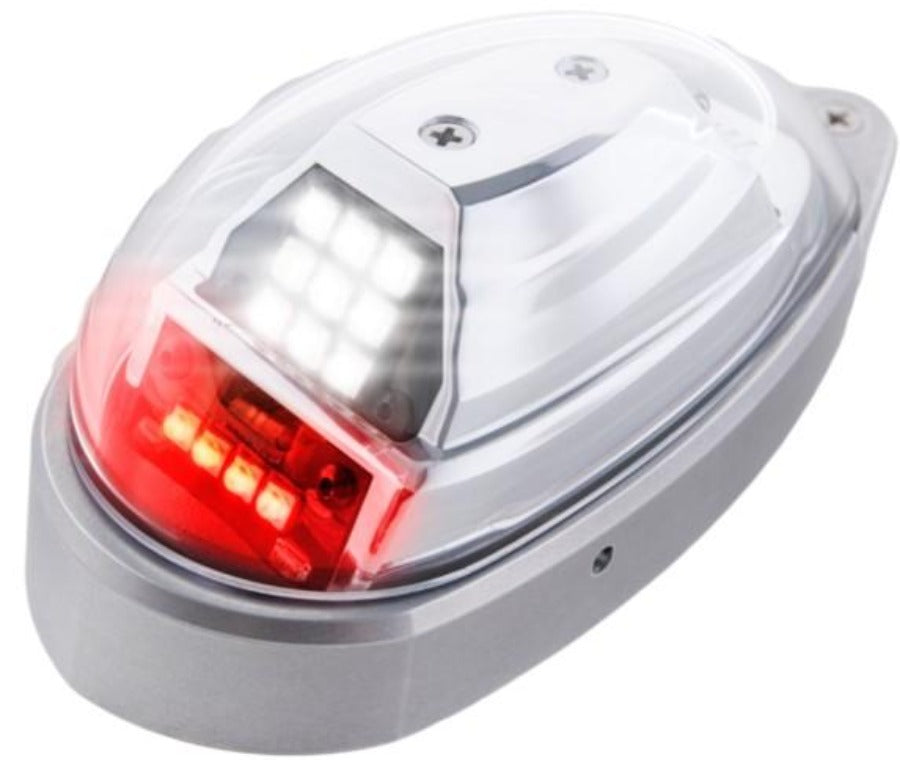

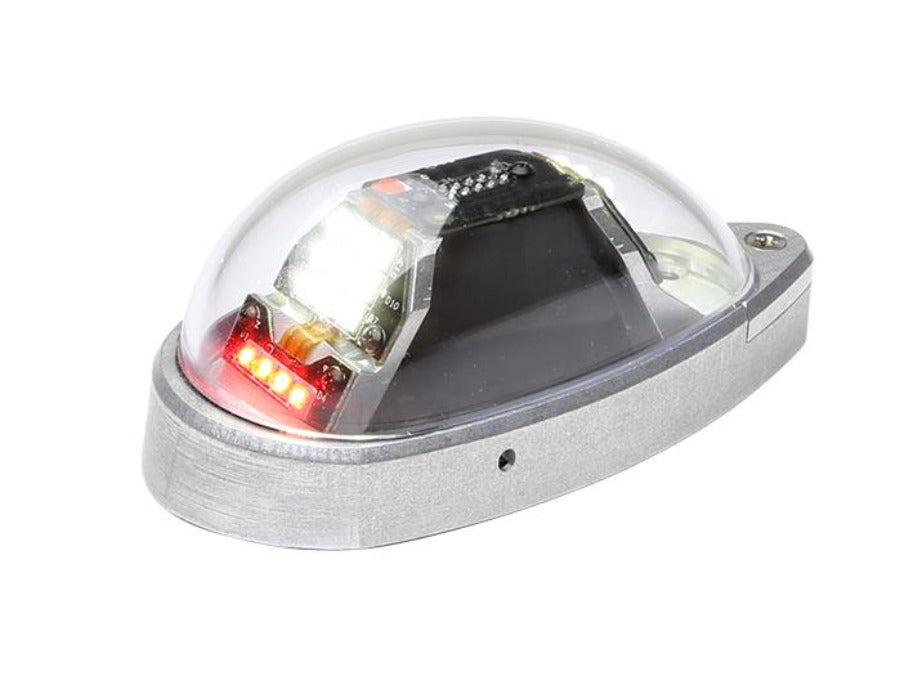

Orion 650 Airplane Position Lights

Whelen Engineering is proud to introduce the NEW ORION 650 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION650 series eliminates the need for external flasher boxes.

Plane Anti Collision Lights by Whelen

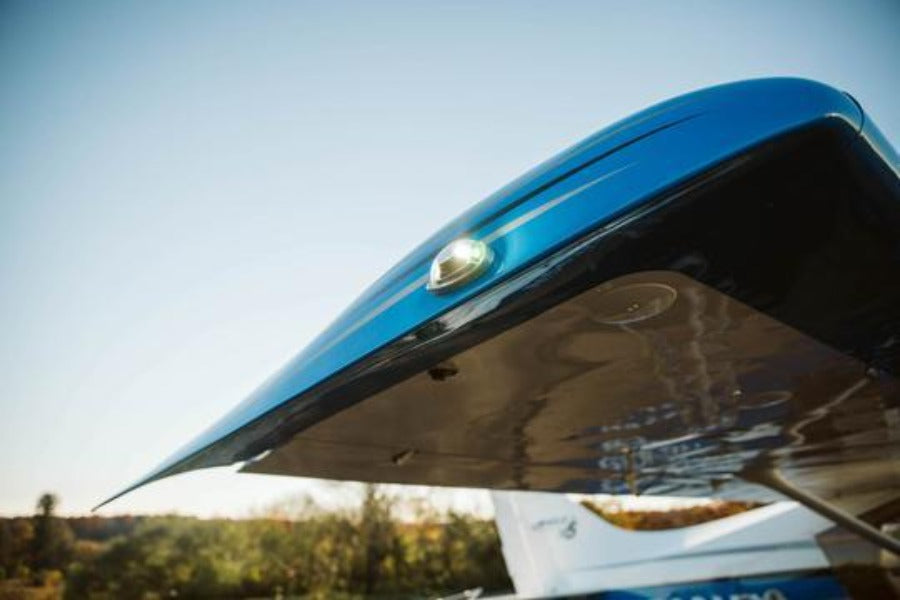

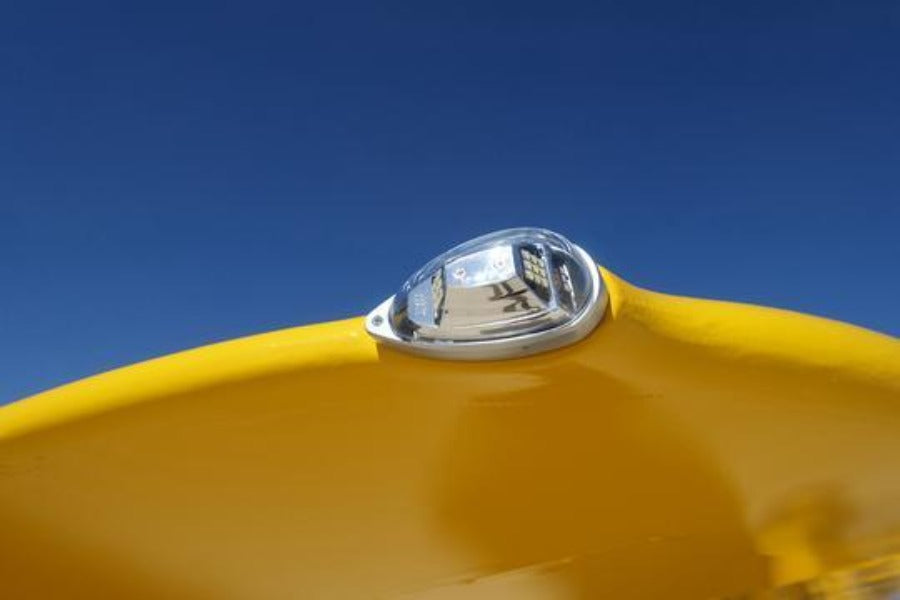

Flush mountable for a wide variety of applications with minimal integration and easily retrofittable to the Whelen legacy strobe products. The ORION 650 series is quite simply the brightest form of LED Anti-collision and Position lighting available.

Orion 650 Airplane Position Lights Information

• Drawing 90725
• Weight 0.26 lbs
• Current Draw 14V / 28V 0.30 / 0.15 Amps Position 0.70 / 0.35 Amps Avg. ACL
• Lenses Clear Hardcoated Polycarbonate

Whelen Orion 650 Nav Lights Airplane Certifications

OR6501G - 01-0790725-01 - Green/Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC

FAA TSO-C96a Class III / TSO-C30c Type II

OR6501R - 01-0790725-02 - Red/Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC

FAA TSO-C96a Class III / TSO-C30c Type I

OR6502G - 01-0790725-11 - Green/Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC

FAA TSO-C96a Class III / TSO-C30c Type II

OR6502R - 01-0790725-12 - Red/Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC

FAA TSO-C96a Class III / TSO-C30c Type I
