7030

7030

VSI 0-3000 FT

Part No:

Manufacturer: UNITED INSTRUMENTS

VSI 0-3000 FT

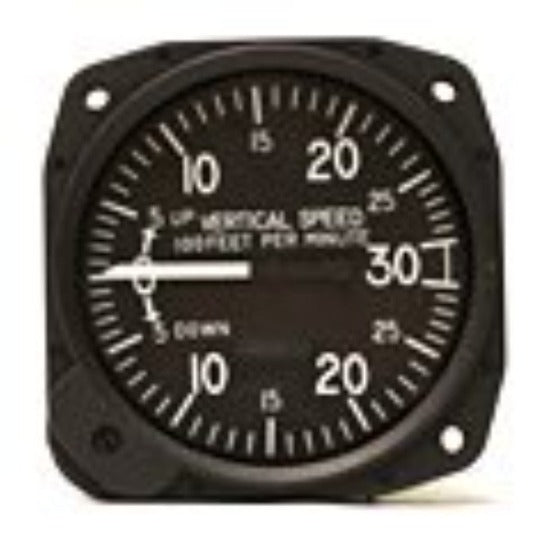

Standard Vertical Speed Indicator, 0-3000 FPM.  The 7000 Series Vertical Speed Indicator is a precision instrument, which provides an accurate and reliable indication of rate of change of altitude.  Ascent is indicated by a clockwise rotation of the pointer from zero. Descent is indicated by a counter clockwise rotation. Zero is at the 9 o'clock position. Stops limit pointer movement at the end of the scale.  A zero adjustment screw is located on the face of the case at the seven o'clock position.

  • Certification: FAA TSO C8b
  • Case Configuration: MS33549, 3 inch
  • Typical Weight: 1.2 Pounds
  • Range: 0 - 2,000 fpm
  • Static Pressure Connection: 1/8-27 ANPT
  • Installation: Removable spring nuts and #6-32 Screws
  • Lighting: Available upon request
