VSI 0-4000 FT

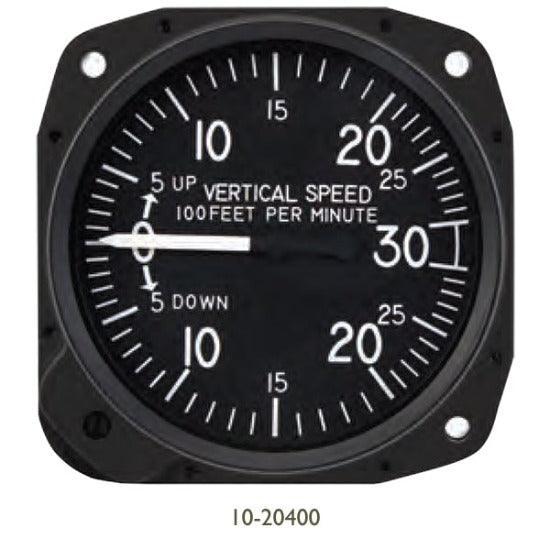

Standard Vertical Speed Indicator, 0-4000 FPM. The 7000 Series Vertical Speed Indicator is a precision instrument, which provides an accurate and reliable indication of rate of change of altitude. Ascent is indicated by a clockwise rotation of the pointer from zero. Descent is indicated by a counter clockwise rotation. Zero is at the 9 o'clock position. Stops limit pointer movement at the end of the scale. A zero adjustment screw is located on the face of the case at the seven o'clock position.
| Providing an accurate indication of rate of change in altitude, this versatile vertical speed indicator (VSI) offers several configurations and has been selected as standard equipment by aircraft manufacturers worldwide. IVSI units provide Instantaneous Vertical Speed Indication. The vertical speed indicator is a precision instrument which provides an accurate indication of rate of change of altitude. This instrument is temperature compensated and is provided with a zero adjustment screw on the face of the case in the seven oclock position. Power: Static system. Manufactured by United Instruments. Used in most production aircraft. Size: 3-1/8" x 3-1/8" x 4", Wt. 0.7 lb. TSO-C8b. |
- Certification: FAA TSO C8b
- Case Configuration: MS33549, 3 inch
- Typical Weight: 1.2 Pounds
- Range: 0 - 4,000 fpm
- Static Pressure Connection: 1/8-27 ANPT
- Installation: Removable spring nuts and #6-32 Screws
- Lighting: Available upon request
