71080 Series Whelen LED Beacon Lights

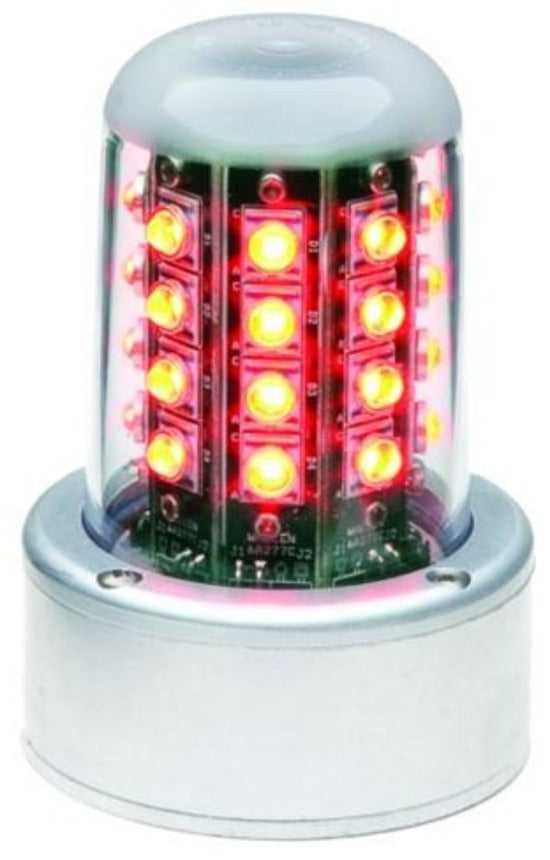

71080 Red LED Beacon

Please Call For Availability!

Part No:

Manufacturer: WHELEN

71080 Series Led Beacon Lights - Whelen Aerospace Technologies

71080 LED beacons from Whelen are FAA TSO'd self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace existing beacons utilizing a 2-1/2 diameter footprint.

71080 Whelen Aircraft Beacon Allows You To Remove Your Strobe Power Supply

These LEDs may also be used to replace remotely mounted strobe lights (ref. Whelen A470 series) to allow the removal of the strobe power supply. Internal mounting plate provided with a choice of mounting holes to retrofit most existing mounting patterns.



71080 Beacon Aviation Approvals:

FAA/TSO-C96a Class I
FAA/TSO-C96a Class I(150 ecp)
  • Power Consumption: 0.45 Amps @ 28 VDC
  • LED Color: Aviation RED
  • Weight: 1.8 lbs (816gm) (unless otherwise noted)
  • Exposed Height: 2.70" (69mm)
  • Lens Color: Clear glass
  • Replaces: Whelen: 90044 Series and Grimes: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
