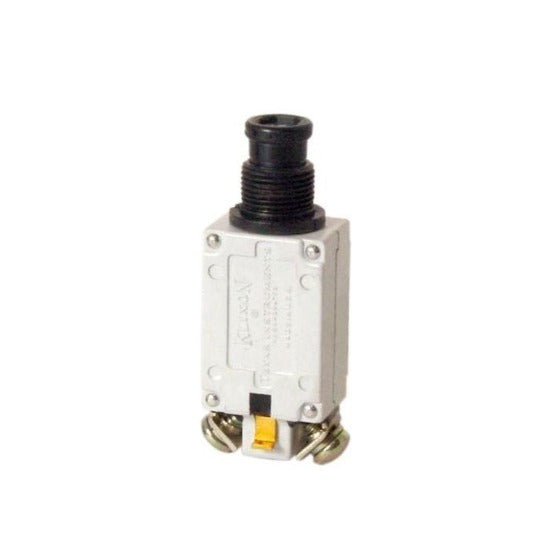

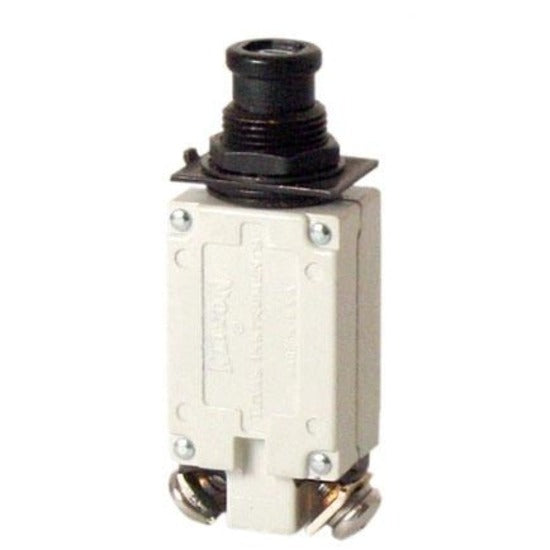

7274 Series Circuit Breaker
KLIXON® 7274 series are small, lightweight, low amperage devices that are specifically designed to protect aircraft/aerospace cable and components in airborne vehicles and equipment. The commercial grade version of this circuit breaker is the Klixon® 7277 series. The 7277 and 7274-2 series circuit breakers are physically and electrically identical, with the exception that the 7277 has wider calibration limits.
Klixon 7274 series is designed for applications that do not require the tighter performance characteristics and approvals of our military circuit breakers.
Single Phase, Non-Compensated, Low Amp, General Application
- Miniature size
- Light weight
- Trip free design
- Current ratings (½ to 20 amps)
- High vibration resistance
Specifications
| Vibrations | 10G minimum, 50–500 Hz (other vibration levels available) |
| Mechanical Shock | 35G |
| Acceleration | 10G |
| Weight | 7274-2 (MS 26574): 28 grams maximum 7274-4 (MS 26574 A): 28 grams maximum 7274-11 (MS 22073): 33 grams maximum 7274-69 (MS 22073V): 33 grams 7274-70 (MS 26474L): 33 grams |
| Interrupt Current | 0.50–5 amps: unlimited at 28 VDC 7.50–15 amps: 2,000 amps at 28 VDC 0.50–1.50 amps: unlimited at 120 VAC, 400 Hz 2–5 amps: 800 amps at 120 VAC, 400 Hz 7.50–20 amps: 500 amps at 120 VAC, 400 Hz |
| Endurance | 2,500 cycles: 120 VAC, 400 Hz inductive 2,500 cycles: 30 VDC inductive 5,000 cycles: 120 VAC, 400 Hz resistive 5,000 cycles: 30 VDC resistive 10,000 cycles: Mechanical, no load |
