903ID-2

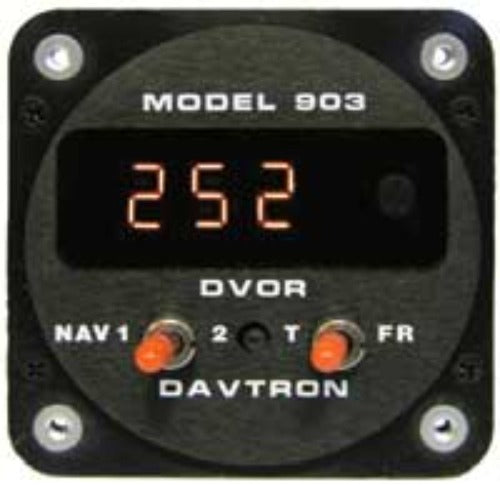

The Davtron M903ID/LOC meets the challenge to produce a small, affordable, lightweight indicator. This computer based instrument is a compact and effective component, enhancing any navigation system. The DVOR reads digitally to aircraft's radial position from the VOR station. The instantaneous To/From switching capability makes the 903 the easiest and fastest method of obtaining VOR checks. The localizer mode displays course deviation numerically with the equivalent resolution if a 1/2 dot of a CDI. The 903 takes the Morse code identifier signal from the VOR station and displays sequentially the station letters on a single alphanumeric display. The letters are displayed at a clear readable rate. The 903 indicator can easily be switched to select NAV1 or NAV2 for use. The second toggle switch on the front panel selects either a Toor From bearing. The small push button switch is used for calibration during installation. The 903 becomes a signal level meter when the switch is pressed. An external signal level meter is no longer required for installation.

• AUTOMATIC VOR POSITION ORIENTATION
• LOCALIZER DEVIATION AND CENTERLINE
• ALPHANUMERIC STATION IDENTIFIY "ID" M903ID
• INSTANT TO/FROM SWITCHING
• DIGITAL FILTERING AND SIGNAL PROCESSING
• AUTOMATIC DIMMING
• SUNLIGHT READABLE DISPLAY
• SERIAL ASCII OUTPUT OF STATION & RADIAL OFF FLAG, "---"
• FAA-PMA APPROVED

SPECIFICATIONS:

• Station Ident
• 14 or 28 Volt operation
• Input signal 0.35 to 10 Volts
• Supply current 0.3 Amperes
• Operating temperature range -20C to +55C
• DVOR accuracy +/- 2 degrees
• Weight 6 oz.
• Warranty 1 year
