Aerocruze 100 - BendixKing Mooney Autopilot

Part No: Kit 1

Pre-Order Now!

Call for price

Shipping calculated at checkout.
Size: 3" Round
Voltage: 12V

Mooney Autopilot Avionics Package By BendixKing

The AeroCruze 100 is an affordable and flexible digital autopilot system for M20B, M20C, M20D, M20E, M20F, M20G, M20J, M20K, M20L, M20M, M20R, M20S, M20TN, M20U, and M20V. The AeroCruze100 provides seamless integration with the AeroVue Touch EFIS as well as a variety of other manufacturers.

Aerocruze 100 Digital Autopilot System Features

When connected to a panel-mounted GPS, autopilot follows roll steering commands to fly complex flight plans Similar to lane assist in automobiles, the AEP stand-by mode monitors aircraft bank angle. Autopilot corrects the bank angles greater than 45 degrees by automatic roll command.

Emergency Autopilot Level

An emergency autopilot level button helps to bring the aircraft to a wings-level position. Connects to either hand-held GPS or IFR panel mount GPS systems.   When connected to hand-held GPS, follows programmed flight plans.

Mooney Autopilot Size Variations

The complete system is offered at a low cost, with the choice of two form-factor variations: 3" round and flat pack.

STC Pending:

  • Mooney M20B
  • Mooney M20C
  • Mooney M20D
  • Mooney M20E
  • Mooney M20F
  • Mooney M20G
  • Mooney M20J
  • Mooney M20C
  • Mooney M20D
  • Mooney M20E
  • Mooney M20F
  • Mooney M20G
  • Mooney M20J
  • Mooney M20K
  • Mooney M20L
  • Mooney M20M
  • Mooney M20R
  • Mooney M20S
  • Mooney M20TN
  • Mooney M20U
  • Mooney M20V

Mooney Autopilot Avionics Sales and Installation

Speak with an expert toll-free at 800-474-9714 for recommendations on your aircraft today for digital autopilot system requirements for Mooney aircraft!

  • Bank Angle Select (if no GPS signal)
  • Track Select
  • GPS Nav (point to point type flight plans)
  • GPSS (roll steering commands)
  • Vertical Speed Select
  • Altitude Hold
  • Altitude Select
  • Altitude Pre-Select
  • GPSV (LPV Approaches)
  • Control Wheel Steering
  • Emergency Level
  • AEP (Bank Angle Protection Mode)
  • Roll Servo
  • Pitch Servo
  • Install Kit
  • Wiring Harness
  • 12-28 Volt Variants
  • 2” Round: 2.5” H x 2.5” W x 5.5” D

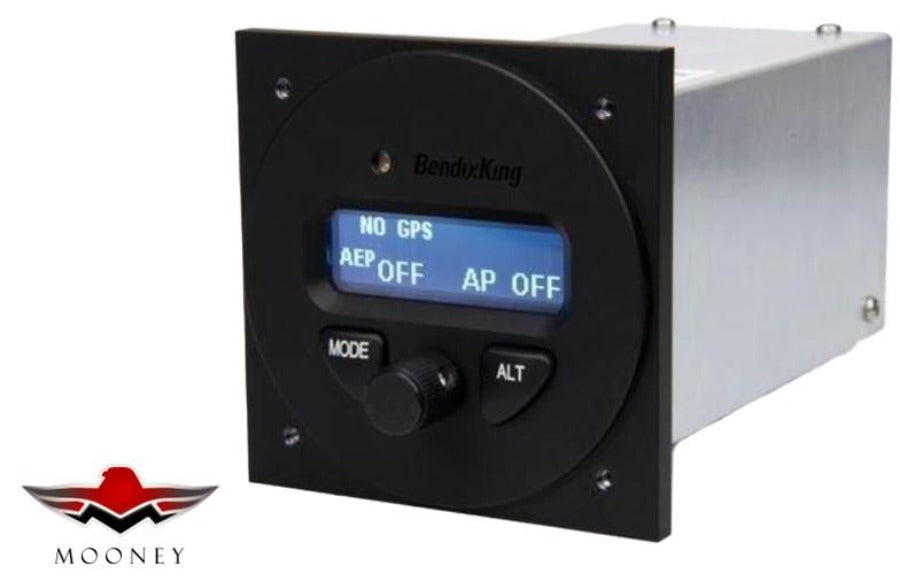

  • 3” Round: 3.25” H x 3.25” W x 5.5” D

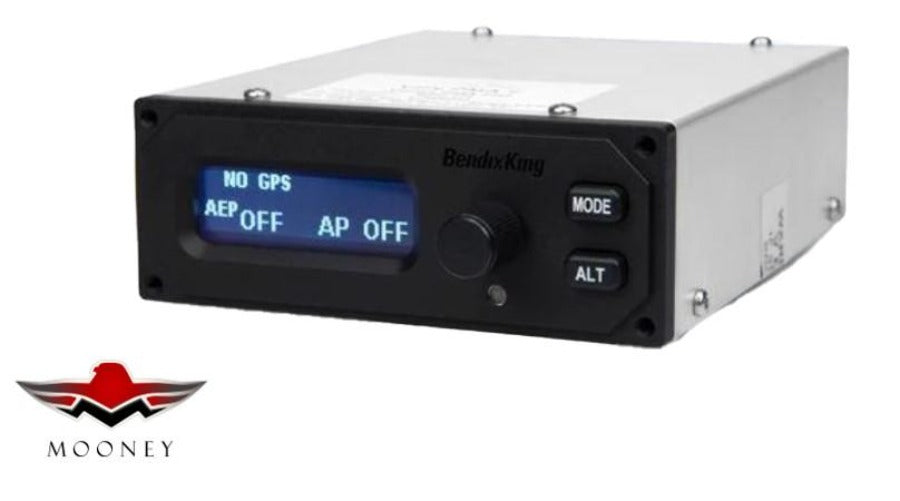

  • Flat Pack: 1.6” H x 4.3” W x 6.1” D
Questions & Answers

See below for answers to our most popular questions.

Have a Question?

  • Does the AP for the Mooney include an axis for yaw control? Thanks.

    Yaw control is not an option at this time. Neither is Auto Trim. This will be pitch and roll only.

  • Would this autopilot work for a 1963 Mooney m20c or is this for later models?

    The following Mooneys will be covered by the STC.

    M20B, M20C, M20D, M20E, M20F, M20G, M20J, M20K, M20L, M20M, M20R, M20S, M20TN, M20U, and M20V
