R A MILLER
Part No: AV-10
Pickup currently unavailable at 3650 Drane Field Rd

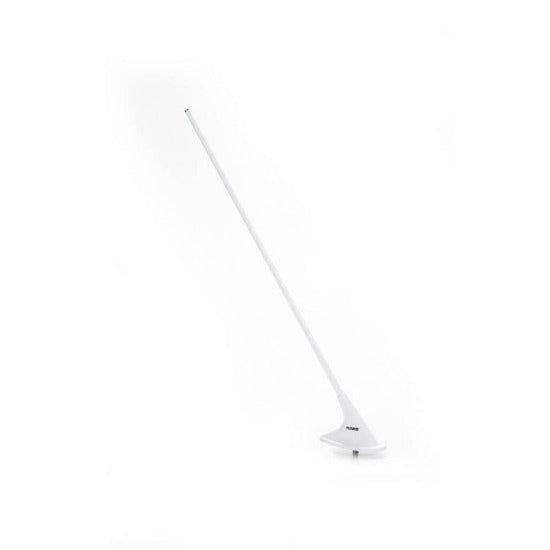

Antenna, Comm 250 knots
- AV-10 is a comunications antenna designed for high-performance aircraft applications
- Exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base.
- Designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 2.70 lb @ 250 mph.
- Direct replacement for the CI 121
|APPLICATION:||Airborne Communications||FREQUENCY:||118 – 137 MHz|
|IMPEDANCE:||50 ohms||VSWR:||2.0:1 Maximum|
|CONNECTOR:||“BNC” Female||FAA TSO:||C37d, C38d|
|MAX HEIGHT:||21.56″||MAX WEIGHT:||8 oz.|
