COMANT

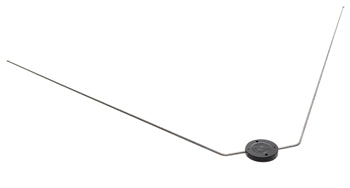

AV-525 VOR/LOC/GS Antenna | 108-118 MHz & 329-335 MHz
Part No: AV-525
$367.00
/
Shipping calculated at checkout.
DESCRIPTION
The AV-525 is a VOR/LOC/GS (receive only) antenna similar in style to the AV-12 but utilizes an internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 157P.
Specifications
Max. Weight:
0.50 lb
Application:
VOR/LOC/GS Receive Only
Frequency:
108-118 MHz (VOR/LOC)
328-336 MHz (GS)
Impedance:
50 Ohms Nominal
VSWR:
3.0:1 Maximum 108-118 MHz
2.0:1 Maximum 328-336 MHz
Polarization:
Horizontal
Pattern:
Omnidirectional
Connector:
BNC Female
FAA Approvals:
TSO-C34e, TSO-C36e, TSO-C40c
