AV-532 VOR/LOC/GS Antenna | 108-118 MHz & 328-336 MHz
Part No:
DESCRIPTION
AV-532 VOR/LOC/GS Antenna | 108-118 MHz & 328-336 MHz

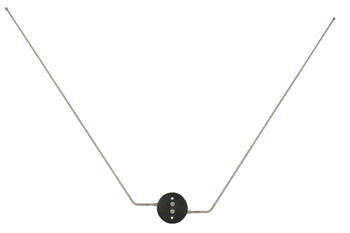

The AV-532 is a VOR/LOC/GS (receive only) antenna. It consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The unit may be mounted with the V pointed either forward or aft.
The AV-532 antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 3.42 lb @ 250 mph.
Features
- Utilizes an internal balun transformer
- Horizontal polarization
- 108-118 MHz (VOR/LOC) & 328-336 MHz (GS) frequency ranges
Specifications
Max. Weight:
11 oz.
Application:
VOR/LOC/GS Receive Only
Frequency:
108-118 MHz
328-336 MHz
Impedance:
50 Ohms Nominal
VSWR:
2.0:1 Maximum
Polarization:
Horizontal
Pattern:
Omnidirectional
Connector:
Threaded studs to accept transmission line assembly with integral balun transformer (not included)
RF Power Capacity:
Receive Only
FAA Approval:
TSO-C40c
