AV-547

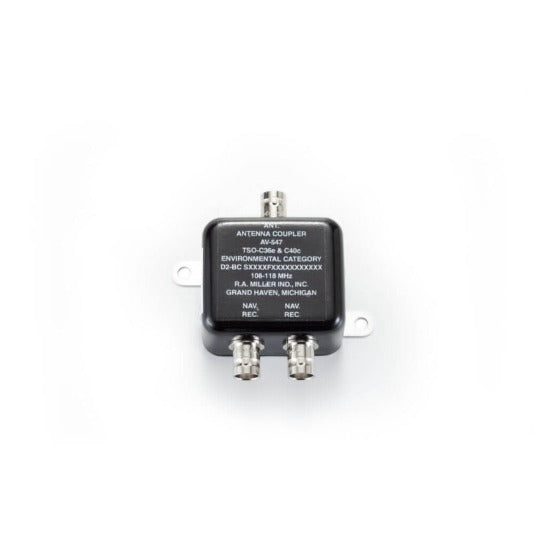

Coupler, Dual VOR

• Splits signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver
• 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
