DESCRIPTION

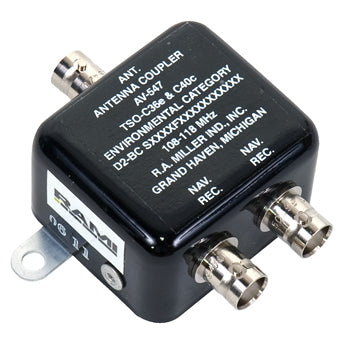

AV-547 Splitter | VOR/LOC Receive Only
The AV-547 splitter feeds two navigation receivers from one antenna. The matching circuitry is enclosed in a durable, lightweight aluminum housing for superior mechanical and environmental stability. The splitter operates at altitudes of up to 50,000 ft. This product is a direct replacement for the CI 502.
Features
- Direct replacement for the CI 502
- Aluminum housing
- 108-118 MHz frequency range
Specifications
Application:
VOR/LOC (Receive Only)
Frequency:
108 – 118 MHz
Impedance:
50 Ohms Nominal
VSWR:
1.4:1 Maximum
Insertion Loss:
3.5 dB Maximum
Isolation:
30 dB Minimum
Connectors:
(3) BNC Female
RF Power Capacity:
Receive Only
FAA Approvals:
TSO-C36e, TSO-C40c
