AV-570 Coupler, 1 VOR/1 GS Diplexer

Part No: AV-570

$139.00
Shipping calculated at checkout.
DESCRIPTION

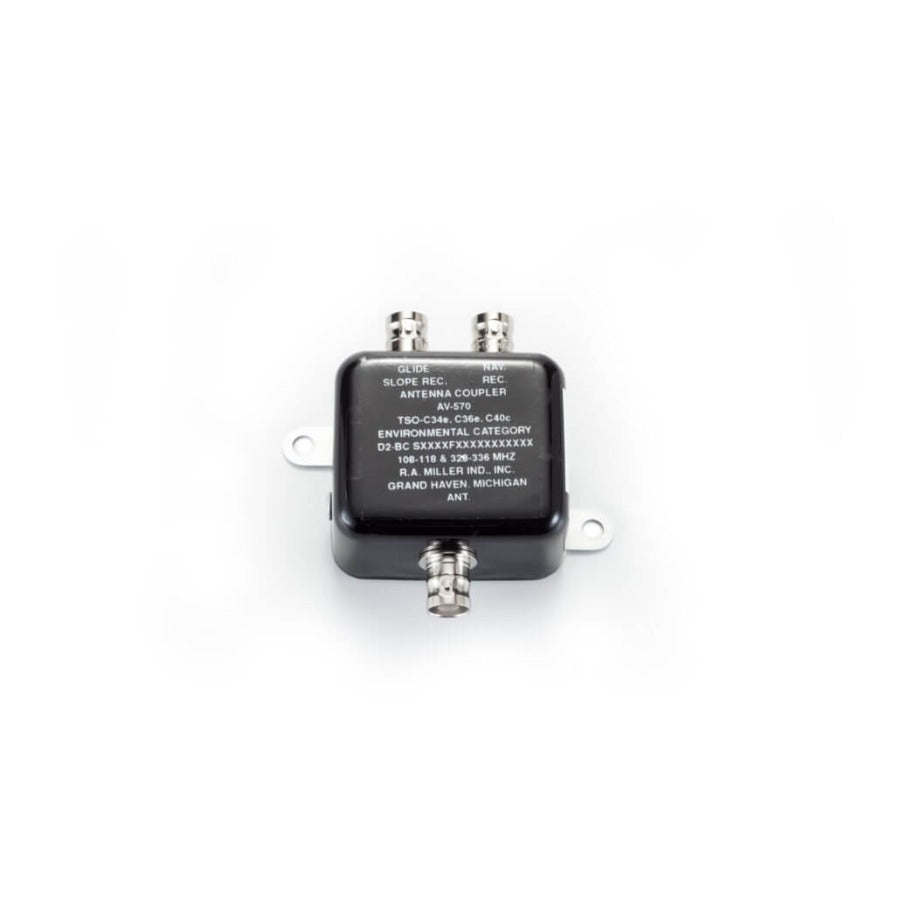

AV-570 Coupler, 1 VOR/1 GS Diplexer

The AV-570 diplexer splits the signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver. The diplexer construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft. This product is a direct replacement for the CI 507.

Features
  • Splits signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver

  • 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response

  • 50Ω impedance

Specifications

Application: Navigation & Glide Slope
Frequency: 108-118 & 328-335 MHz
Impedance: 50 Ohms Nominal
Connector: (3) Type "BNC" Females
Max Weight: 3.5 oz
Filtering: 30 dB Min / 40 dB Avg
Insertion loss: 1 dB Maximum
Isolation: 38 dB Min
Dimensions: 2" x 1-3/3" x 1-1/8"
RF Power Capacity: Receive only
