AV-570 Diplexer | VOR/LOC/GS Receive Only

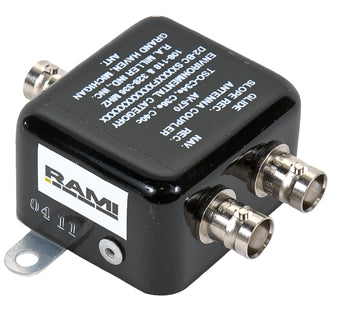

The AV-570 diplexer splits the signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver. The diplexer construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft. This product is a direct replacement for the CI 507.
Features
- Splits signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver
- 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
- 50Ω impedance
Specifications
Max. Weight:
3.5 oz
Frequency:
108-118 MHz
328-336 MHz
Impedance:
50 Ohms Nominal
VSWR:
1.4:1 Maximum
Insertion Loss:
1 dB Maximum
Isolation:
38 dB Minimum
Connectors:
(3) BNC Female
FAA Approvals:
TSO-C34e, TSO-C36e, TSO-C40c
