R A MILLER
DESCRIPTION
Coupler, Dual VOR/1 Glideslope

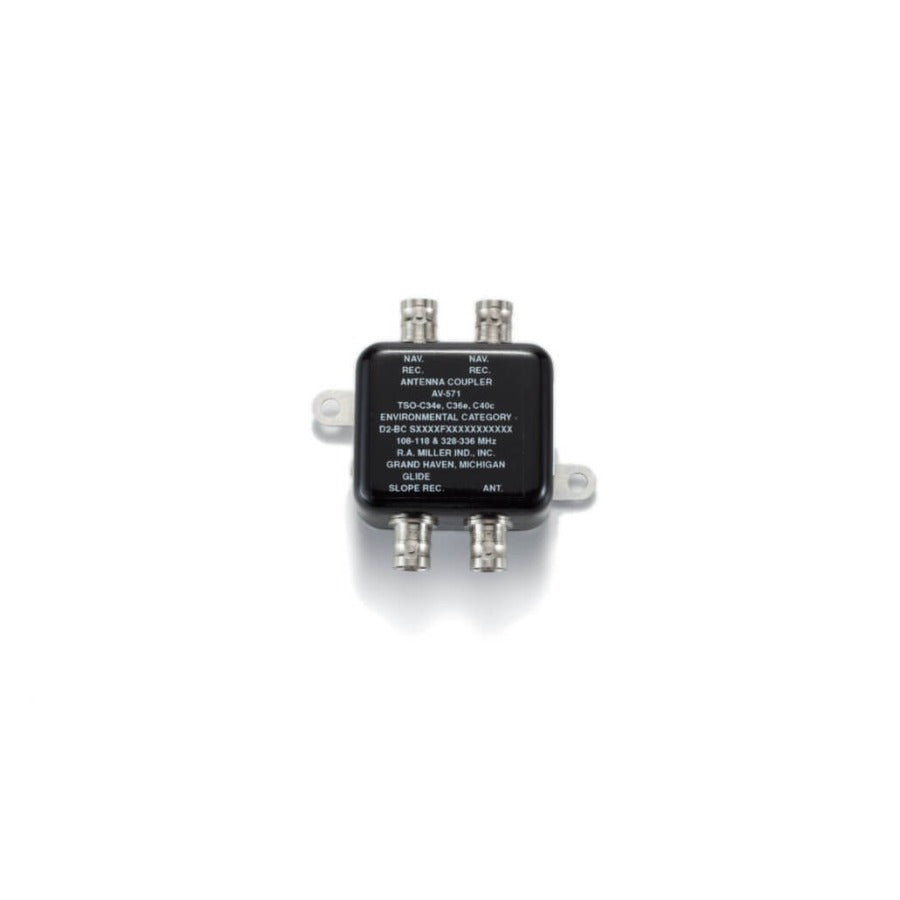

- The AV-571 diplexer/splitter splits the signal from a VOR-Type antenna to feed two NAV and one Glide Slope receivers
- This diplexer/splitter’s construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft.
- Direct replacement for the CI 505.
Specifications
| APPLICATION: | VOR/LOC/GS (Receive Only) | FREQUENCY: | 108-118 MHz, 328-336 MHz |
| IMPEDANCE: | 50 ohms nominal | VSWR: | 1.4:1 Maximum |
| POLARIZATION: | Vertical | PATTERN: | Omni-Directional |
| MAX WEIGHT: | 3.5 oz. | CONNECTOR: | (4) “BNC” Female |
| FAA TSO: | C34e, C36e, C40c | ISOLATION: | 22 dB Minimum / 35 dB Avg |
| INSERTION LOSS: | 1 dB Maximum (GS), 3.5 dB Maximum (VOR/LOC) |
