R A MILLER
DESCRIPTION

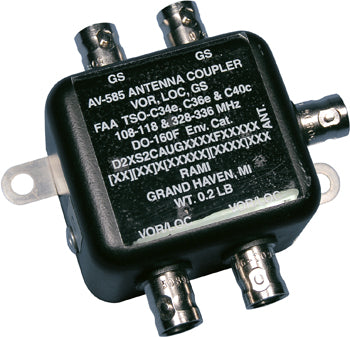

The AV-585 is a diplexer/splitter providing two VOR/ LOC and two GS outputs from one VOR/LOC/GC antenna. It is a direct replacement for the CI-1125.
Features
- Provides 2 VOR/LOC & 2 GS outputs from antenna
- 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
- 50Ω impedance
Specifications
Weight:
3.2 oz
Frequency:
108 MHz to 118 MHz (VOR)
328 MHz to 336 MHz (GS)
VSWR:
1.5:1
Impedance:
50Ω
Insertion loss:
3.5 dB
Isolation:
20 dB
Connector:
BNC (female)
FAA Approvals:
TSO-C34e, TSO-C36e, TSO-C40a
