RAMI

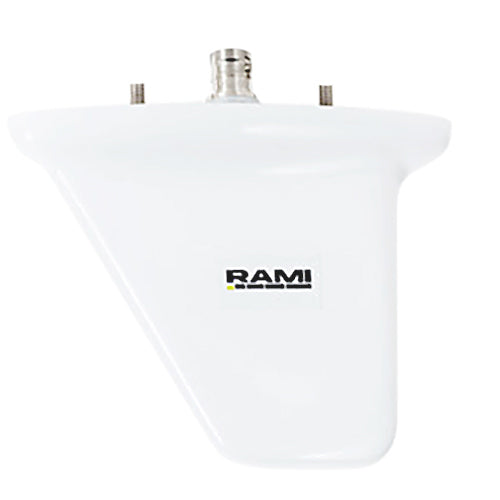

AV-74 DME Transponder Antenna | 960-1220 MHz
Part No: AV-74
$175.00
/
Shipping calculated at checkout.
DESCRIPTION
AV-74 DME Transponder Antenna | 960-1220 MHz
The AV-74 is a broadband blade type antenna for transponder or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware.
The AV-74 is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105
Features
- This antenna is a direct replacement for the CI-105
- DME/Transponder
- Omni-directional
- Vertical polarization
- BNC female connector
- 960-1220 MHz
- 2.5 kW peak RF power
Specifications
Weight:
13.6 oz
Height:
3.4 in
Frequency:
960 MHz to 1220 MHz
Impedance:
50 Ohms Nominal
VSWR:
1.5:1 Maximum
Polarization:
Vertical
Pattern:
Omni-Directional
Connector:
BNC (Female)
RF Power Capacity:
2.5 kW Peak
Color:
Gloss White
FAA Approvals:
TSO-C66c, TSO-C74c
