COMANT
DESCRIPTION

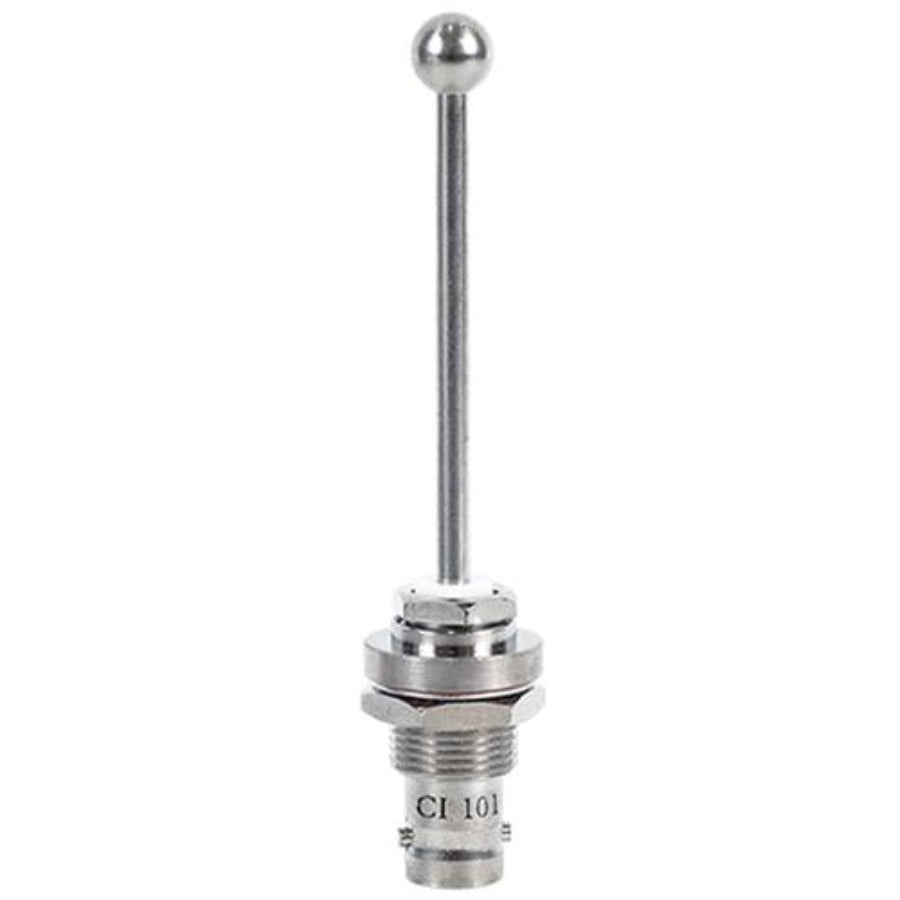

Comant CI 101 Transponder
Transponder antenna with top loaded stub monopole. Antenna radiator is mechanically captivated and is machined from solid brass for impact resistance. Contact points are made from beryllium copper. Metallic parts are plated with bright nickel for corrosion protection. Mounts through a single 0.600” diameter mounting hole. The only model of this type with FAA TSO Authorization.
Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.
Applications
Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information
The Comant Transponder CI101 Transponder Antenna is designed to help your aircraft effectively communicate. The CI101 transponder antenna includes a top-loaded stub monopole. Weighing 0.06 pounds, this lightweight antenna is surprisingly durable. It is constructed from brass with a tin-nickel alloy rust-resistant finish. The Comant CI101 will perform under extreme temperatures, ranging from -54 to +55 degrees Celsius. Invest in this corrosion-resistant antenna for long-lasting use and reliability. SkyGeek offers the Comant CI101 at a great value for any aviator! With its compact design, this transponder antenna is installed through a single 0.600 inch diameter mounting hole. For a compact, lightweight and effective transponder antenna that will resist the elements, the Comant CI101 is ideal. Our Geeks have selected this antenna and other transponder accessories for their high performance, keeping your communications clear at any altitude. Our wide range of communication parts will impress any aviator, from the handy do-it-yourself pilot to experienced technicians.
Specifications
|
MODEL CI 101 TRANSPONDER |
|
|
Electrical |
|
|
Frequency |
1030 to 1090 MHz |
|
VSWR |
1.5:1 1030 MHz |
|
Polarization |
Vertical |
|
Radiation Pattern |
Equivalent of 1/ 4 wave stub typical |
|
Impedance RF |
50 Ohms |
|
Resistance DC |
Open Circuit |
|
Power RF |
1.0 KW Peak |
|
Mechanical |
|
|
Weight |
0.06 lb. Maximum |
|
Height |
3.33 in. Maximum |
|
Finish |
Tin-Nickel Alloy |
|
Environmental |
|
|
Temperature |
-54ºC to +55ºC |
|
Altitude |
30,000 ft. |
|
Air Speed |
300 Knots TAS |
|
Federal Specification |
|
|
RTCA Environmental |
DO-138 |
|
FAA TSO |
C74c |
|
RTCA MOPS |
DO-144 |
