COMANT
DESCRIPTION

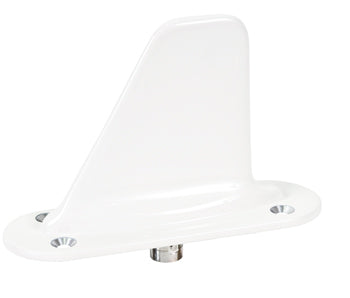

CI 105-7 DME Transponder Antenna
Comant's CI 105-7 DME/Transponder antenna is identical to the CI 105 in operating characteristics, except it will provide the popular 4-hole external mounting typical on some turbo-prop and jet aircraft.
This antenna (CI-105-7) includes a C connector, covers 960 - 1220 MHz and 1030 - 1090 MHz frequencies, and is rated to 400 Knots TAS at 25,000 ft.
Specifications
Weight:
0.4 lb
Dimensions (height):
3.31 in
Finish:
polyurethane enamel
Material:
molded radome
Connector:
C
Frequency:
960 - 1220 MHz
1030 - 1090 MHz
VSWR:
1.5:1 @ 960 - 1220 MHz, maximum
1.3:1 @ 1025 - 1150 MHz, maximum
Polarization:
Vertical
Radiation pattern:
equivalent to a 1/4 wave stub
Impedance:
50Ω
Resistance DC:
open circuit
Power RF:
2.5 KW Peak
Temperature:
-54° to 55° C
Altitude:
70,000 ft
Airspeed:
400 Knots TAS at 25,000 ft
Gasket:
B10505
