Weight:
2.25 lb, maximum
COMANT

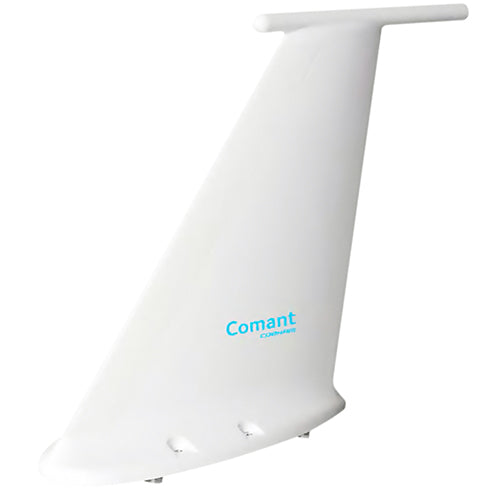

CI 1085-20-L Multi-Function VHF/L Band Antenna | Dual Port, Edge Protection
Part No: CI-108520L
$2,200.00
/
Shipping calculated at checkout.
DESCRIPTION
CI 1085-20-L Multi-Function VHF/L Band Antenna | Dual Port, Edge Protection
The CI 1085-20-L Dual Port, Multi-Function antenna supports VHF, DME, UAT/ADS-B, and ATCRBS transponder/Mode S frequencies in a single antenna. This antenna has five different TSO certifications and uses the the same popular footprint of many other ATCRBS Mode S Transponder/DME/UAT ADS-B and VHF communications antennas. This CI 1085 Multi-Function antenna is suited for operation on fixed-wing turbine powered aircrafts and light jets.
Features
- VHF Communications: 116 MHz – 156 MHz
- DME: 960 MHz – 1215 MHz
- UAT/ADS-B: 978 MHz
- ATCRBS Transponder/Mode S: 1030 MHz – 1090 MHz
Specifications
Installation Instr.:
A108529 Supplied with Antenna
Connector:
J1 BNC (F) 116 MHz – 156 MHz
J2 TNC (F) 960-1220 / 1030 MHz – 1090 MHz
Finish:
Polyurethane white paint
Certifications:
RTCA DO-160G
FAA TSO C74d ATCRBS/Transponder, C66c DME, C112e ARCRBS/Mode S Transponder, C154c UAT/ADS-B, C169a VHF Comm
Frequency / VSWR (max):
116 MHz – 156 MHz/ 3.0:1
960 MHz – 1215 MHz / 2.0:1
1030 MHz – 1090 MHz / 1.5:1
978 MHz / 1.7:1
Polarization:
Vertical
Radiation Pattern:
Omni Directional
Impedance:
50Ω
Power Rating:
VHF: 40 watts
L Band: 1 KW peak
