COMANT
DESCRIPTION
CI 120 G/S

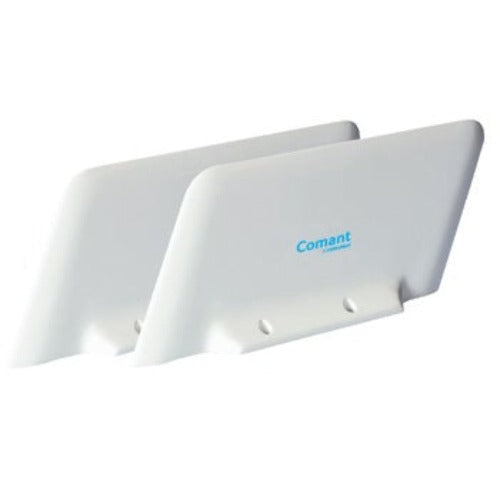

Frequency 108-118 MHz (VOR/LOC) 329-335 MHz (Glide Slope) VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single, twin, jet and helicopter aircraft. Also provides glide slope reception capability. Complete set includes a pair (2) of blades, each with single BNC connector output, two coax interconnect cables and a signal combiner with single BNC connector output providing for a single cable run to the avionics installation. View the footprint of this combiner CI 120-3. For dual VOR/Single Glide Slope operation with NAV 1 and NAV 2 receivers, use CI 505 diplexer. Dual VOR/dual glide slope operation is available when used with the CI 1125 diplexer.
VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single engine, twin, jet, and helicopter aircraft.
Provides glideslope reception capability. Complete set includes a pair (2) of blades, each with single BNC connector output, two coax interconnect cables and a signal combiner output providing for a single cable run to the avionics installation.
Applications
Most popular aircraft up to and including business jets. Consult your FBO or installation shop for best applications information.
Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.
Features
- VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation.
- Antenna system qualified for use on single, twin, jet and helicopter aircraft.
- Also provides glide slope reception capability.
- Complete set includes a pair (2) of blades, each with single BNC connector output, two coax interconnect cables and a signal combiner with single BNC connector output providing for a single cable run to the avionics installation.
- For dual VOR/Single Glide Slope operation with NAV 1 and NAV 2 receivers, use CI-505 diplexer.
- Dual VOR/dual glide slope operation is available when used with the CI-1125 diplexer.
Specifications
|
MODEL CI 120G/S VOR/GS ANTENNA |
|
|
Electrical |
|
|
Frequency |
108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope) |
|
VSWR |
6.0:1 108-118 MHz (VOR/ LOC) 5.0:1 329-335 MHZ(Glide Slope) |
|
Polarization |
Horizontal |
|
Radiation Pattern |
Omnidirectional |
|
Impedance |
50 Ohms Nominal |
|
Power |
Receive Only |
|
Mechanical |
|
|
Weight |
1.4 lb. Per Blade |
|
Height |
6.0 in. Maximum |
|
Material |
Molded Radome |
|
Finish |
Polyurethane Enamel |
|
Connector |
BNC/ Single Output Combiner |
|
Environmental |
|
|
Temperature |
-55ºC to +85ºC |
|
Altitude |
50000ft. |
|
Air speed |
600 Knots TAS @ 25000 ft |
|
Federal Specifications |
|
|
RTCA Environmental |
DO-160D |
|
Environmental Category |
[(F2)X]ACE[(T)E1P]XRXXXSXXXXXXXXXCX |
|
FAA TSO |
C34e, C36e, C40c |
|
RTCA MOPS |
DO-192, DO-195, DO-196 |
