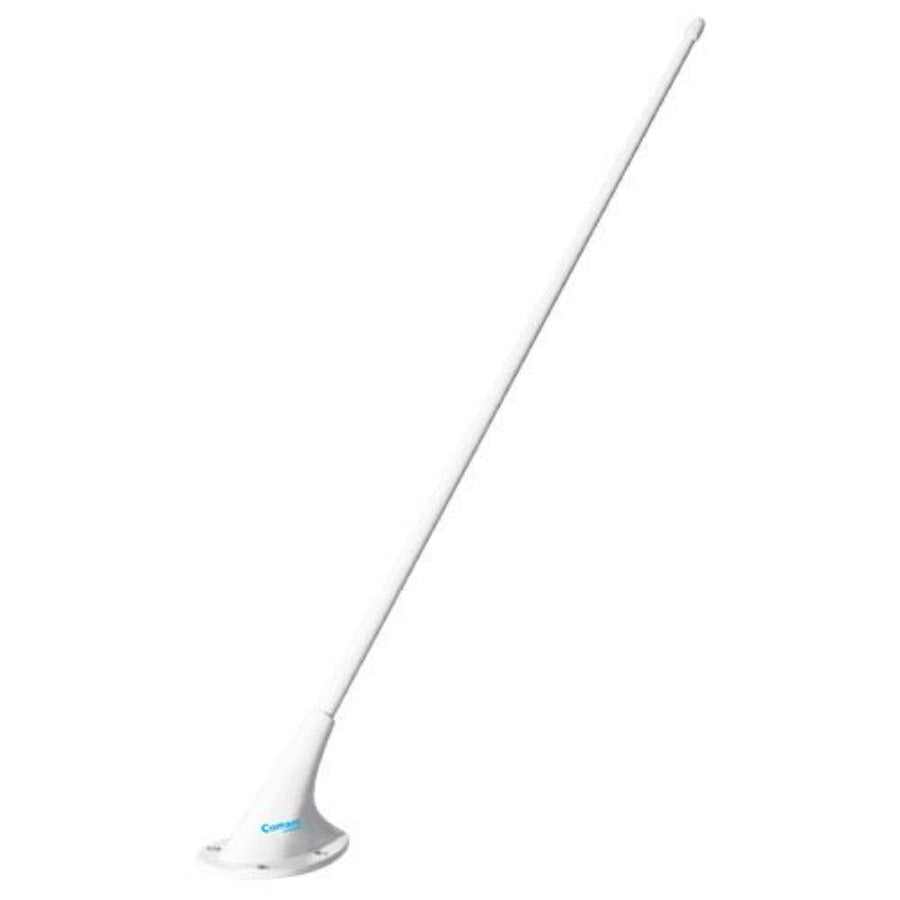

Comant CI 121 VHF Communication
Our most popular VHF, the CI 121 is similar to our CI 109, only the CI 121 has a smaller diameter whip and is lighter at only 0.5 pounds. Features a tapered glass laminate housing and die-cast Aluminum base. Offers standard mounting and appearance to many Cessna communication antennas.
The CI 121 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186 MOPS.
Similar to the CI 109, the CI 121 is smaller in diameter and lighter at only 0.5 pounds. Features a tapered glass laminate housing and die-cast aluminum base. Offers standard mounting and appearance to many Cessna communication antennas. The CI 121 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.
Frequencies Covered 118-137 MHz
Features
- Frequency: 118-137
- VSWR: 2.5:1 Maximum
- Polarization: Vertical
- Radiation Pattern: Omnidirectional
- Impedance RF: 50 Ohms
- Power RF: 50 Watts
- Weight: 0.5 lbs Max.
- Height: 18.50 inches Max.
- Material: Cast Housing / Fiberglass whip
- Finish: Polyurethane Enamel
- Connector: BNC (female)
- Temperature: -55 to +85 Celcius
- Altitude: 50,000 ft.
- Airspeed: 250 KTAS
- FAA TSO: C37d, C38d
- RTCA Environmental: DO-160D
- Gasket: B12607-3 Cork Neoprene
Specifications
MODEL CI-121 VHF ANTENNA |
|
Electrical |
|
Frequency |
118-137 MHz |
VSWR |
2.5:1 Maximum |
Polarization |
Vertical |
Radiation Pattern |
Omnidirectional |
Impedance |
50 Ohms |
Power |
50 Watts |
Mechanical |
|
Weight |
0.5 lbs. Max. |
Height |
19 in |
Material |
Metal Housing / Fiberglass Whip |
Finish |
Glossy White |
Connector |
BNC (Female) |
Gasket B12607-3 |
Cork Neoprene |
Federal Specifications |
|
RCTA Environmental |
DO-160D |
FAA TSO |
C37d,C38d |
