Comant CI 158C VOR/LOC/GS

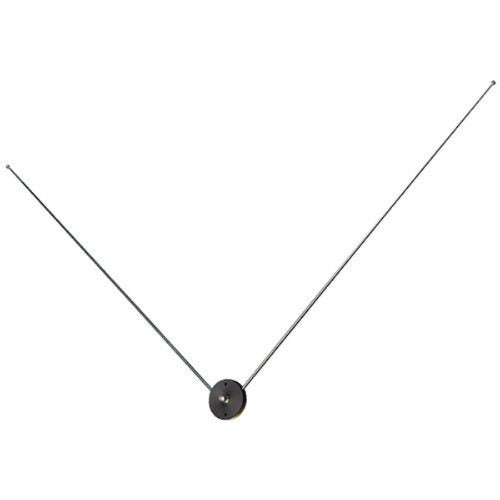

“V” Dipole VOR/LOC/GS antenna with detachable elements mounts on top of vertical stabilizer for most single engine general aviation aircraft. RF design similar to the CI 157P. Integral ferrite balun provides for higher radiation efficiency. Detachable elements result in a significantly smaller shipping and storage carton than fixed element versions.

• VOR/LOC/GS “V” Dipole antenna with detachable elements
• Suitable for most single–engine, general aviation aircraft

Applications

Consult your FBO or installation shop for best application information. Not approved for helicopter installations.

Frequencies Covered 108-118 MHz (VOR/LOC), 329-335 MHz (GS)

Specifications

MODEL CI 158C-2 V- DIPOLE
Electrical
Frequency	108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope)
VSWR	3.0:1 108-118 MHz (VOR/ LOC) 3.0:1 329-335 MHZ(Glide Slope)
Polarization	Horizontal
Radiation Pattern	Dipole
Impedance	50 Ohms Nominal
Power	Receive Only
Mechanical
Weight	0.35 lb. Maximum
Height	17-5/8 in. Maximum
Material	Derlin Housing/ Stainless Whips
Finish	Black Housing/ Stainless Whips
Connector	BNC
Environmental
Temperature	-55ºC to +85ºC
Altitude	50,000ft.
Air speed	250 Knots TAS @ 25,000 ft
Federal Specifications
RTCA Environmental	DO-160
FAA TSO	C34e, C38e, C40c
RTCA MOPS	DO-192, DO-195, DO-196
