COMANT
DESCRIPTION

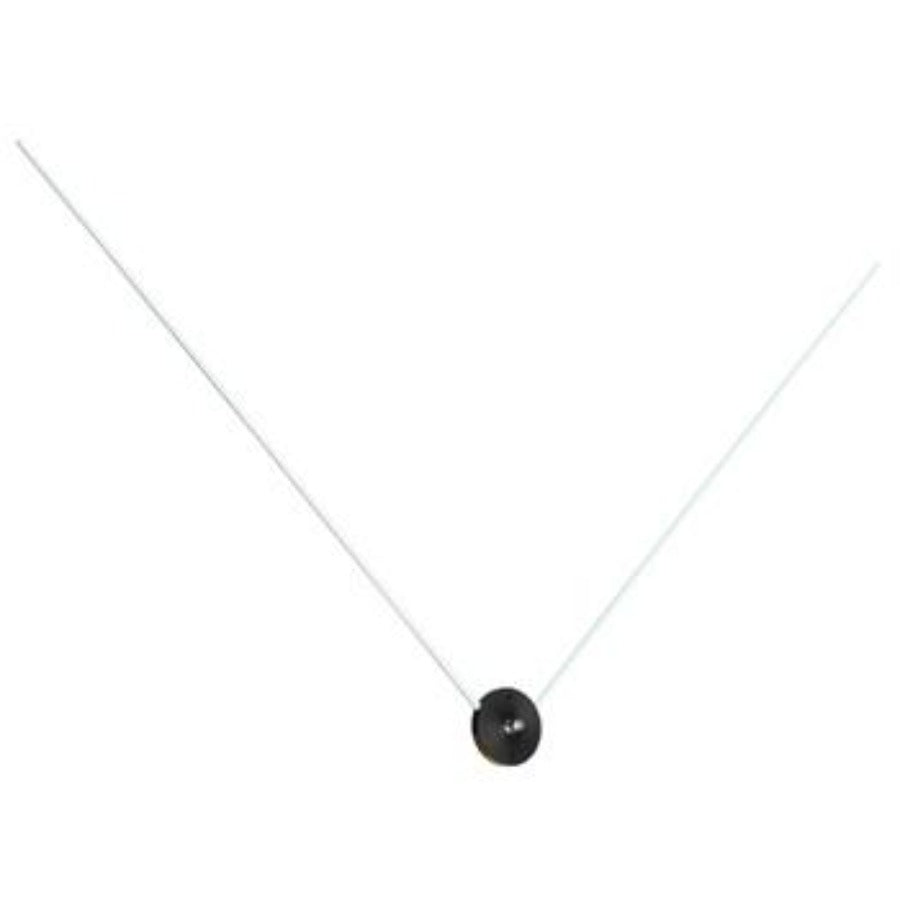

Comant CI 159C VOR/LOC/GS
“V” Dipole VOR/LOC/GS antenna with detachable elements mounts on top of vertical stabilizer for most single engine general aviation aircraft. Integral ferrite balun provides for higher radiation efficiency. Detachable elements result in a significantly smaller shipping and storage carton than fixed element versions. Fiberglass whips with 2-hole mounting configuration.
The CI 159C is identical to the CI 158C with the exception of the radiating elements which are laminated with polyester glass material for improved precipitation static protection.
Features
- Rated to 250 kts
- Impedance: 50 ohms
- Freq: 108-118MHz 329-335 MHz
- VSWR: 3.0:1 max
- Weight: 0.35 lbs.
Specifications
| FREQUENCY | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
| VSWR | 6.0:1 108 - 118 MHz (VOR / LOC) 2.5:1 329 - 335 MHz (Glide Slope) |
| POLARIZATION | Horizontal |
| RADIATION PATTERN | Dipole |
| IMPEDANCE | 50 Ohms Nominal |
| POWER | Receive Only |
Mechanical :
| WEIGHT | 0.35 lb. Maximum |
| HEIGHT | 16.00 in. Maximum |
| MATERIAL | Delrin housing / Glass laminate whips / SS radiators |
| FINISH | Black housing / White Polyurethane enamel over P-Stat paint |
| CONNECTOR | BNC |
Environmental :
| TEMPERATURE | -55°C to +85°C |
| ALTITUDE | 50,000 ft. |
| AIR SPEED | 250 Knots TAS @ 25,000 ft. |
Federal Specifications :
| RTCA ENVIRONMENTAL | DO-160 |
| ENVIRONMENTAL CATEGORY | B2ALXXXXXXXXXXX |
| FAA TSO | C34c, C38c, C40c |
| RTCA MOPS | DO-192, DO-195, DO-196 |
