COMANT
CI 177-13 FM 2 Whip Antenna | 138-174 MHz Extended Band, BNC
Part No:
$810.00
/
Shipping calculated at checkout.
DESCRIPTION

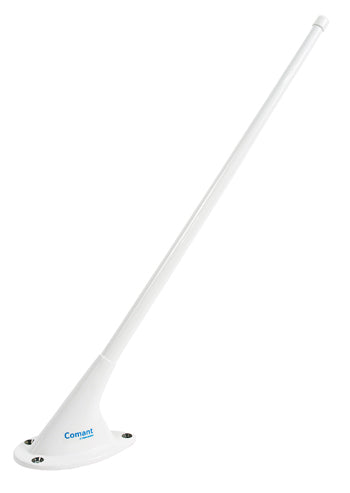

CI 177-13 FM 2 Whip Antenna | 138-174 MHz Extended Band, BNC
The CI 177-13 is an extended band version of the CI-177 over a frequency band of 138 to 174 MHz. Improved bandwidth provides greater flexibility by optimizing features of some of the newer FM transceivers. Features a molded base with popular 3-hole mounting. Radiating element is enclosed in a high strength, tapered glass laminate housing.
Features
- 138-174 MHz frequencies
- Vertical polarization
- Omnidirectional radiation pattern
- Molded base
- 3-hole mounting
- Enclosed radiating element
- High strength tapered glass laminate housing
Specifications
Weight:
0.50 lb
Height:
14.5 in
Frequency:
138-174 MHz
VSWR:
3.0:1 maximum
Polarization:
Vertical
Radiation pattern:
Omnidirectional
Impedance (RF):
50 ohms
Power (RF):
50 watts
Temperature:
-55ºC to +55ºC
Altitude:
30,000 ft
Certifications:
FAA TSO C37b, C38b
