COMANT

Comant CI 205-3 VOR/LOC/GS

Part No: CI-205-3

$2,029.00 $2,398.00 Sold Out
Shipping calculated at checkout.
DESCRIPTION

Comant CI 205-3 VOR/LOC/GS

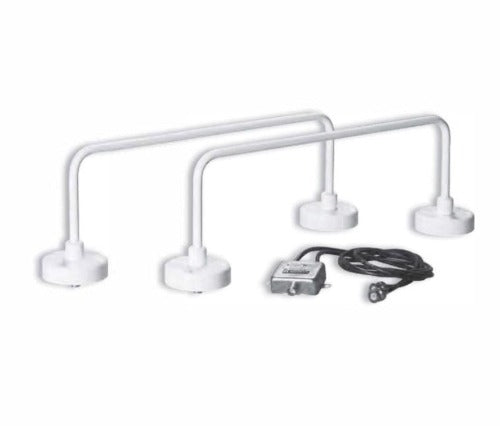

CI 205-3 VOR/LOC/GS VOR/LOC/GS high performance navigation antenna set. Designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. Features low weight/drag, tabular structure to minimize helicopter rotor "down wash" forces. Contains wide band/high efficiency electrical performance and DC grounding for lightning protection. Set includes a pair (2) of "towel bar" sensor elements each with a BNC output connector and a one-piece dual coax interconnect signal combiner harness with single BNC connector output. Provides for a single cable run to the avionics location.

Applications

Consult your FBO or installation shop for best application information. Approved for light helicopter installations.

Frequencies Covered 108-118 MHz (VOR/LOC), 329-335 MHz (GS)

Features
  • VOR/GS High Performance Navigation Antenna Set
  • Frequency: 108-118 MHz (VOR/LOC) | 329-335 MHz (Glideslope)
  • Designed for mounting on the aircraft vertical stabilizer or helicopter tail boom
  • Features low weight/drag
  • Tubular structure to minimize helicopter rotor "down wash" forces
  • Wide band/high frequency electrical performance
  • DC grounding for lightning protection
  • Set includes 2 "towel bar" sensor elements each with one-piece dual coax interconnect signal combiner harness
  • Provides for a single cable routing to the avionics location
  • Use the CI-502 coupler for dual VOR operation with NAV1 and NAV2 receivers
  • Single or dual VOR/single GS operation is available when used with the CI-507 or CI-505 diplexers respectfully in NAV1 or NAV1 and NAV2 installations
  • Use the CI-1125 for dual VOR/dual GS operation
Specifications

Specifications

MODEL CI 205-3 TOWEL BAR SET

Electrical

Frequency

108-118 MHz (VOR /LOC)
329-335 MHz (Glide Slope)

VSWR

5.0:1 108-118 MHz (VOR /LOC)
5.0:1 329-335 MHz (Glide Slope)

Polarization

Horizontal

Radiation Pattern

Omnidirectional

Impedance

50 Ohms Nominal

Power

Receive Only

Mechanical

Weight

1.75 lb.

Height

5.25 in.

Material

Derlin Mounts / Aluminum "Towel Bar"

Finish

Polyurethane Enamel

Connector

BNC (Female)

Enviromental

Temperature

-55C- +85C

Altitude

50,000 ft

Airspeed

300 Knots TAS @25,000 ft.

Federal Specifications

RTCA Environmental

DO-160C

FAA TSO

C34c, C36c, C40c

RTCA MOPS

DO-196
