DESCRIPTION

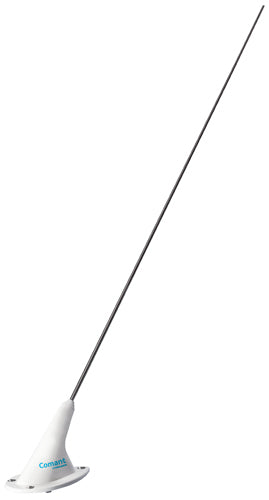

CI 292-1 VHF Whip Antenna | 118-137 MHz, BNC
Designed specifically for top mounting on an aircraft, the CI-292-1 VHF whip antenna provides excellent omnidirectional pattern coverage for all VHF aircraft communications. It is equivalent to the CI-291 but features a straight tapered stainless steel radiator.
The CI-292-1 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118-137 MHz frequency associated with DO-186A MOPS.
Features
- Frequencies Covered: 118-137 MHz
- Re-tested and upgraded to the new RTCA DO-160D environmental requirements
- Straight tapered stainless steel radiator
Specifications
Weight:
0.5 lb Max.
Height:
20.0 in Max.
Material:
Cast Housing / Stainless steel whip
Finish:
Polyurethane Enamel
Frequency:
118 MHz to 137 MHz
VSWR:
2.5:1 Maximum
Polarization:
Vertical
Radiation Pattern:
Omnidirectional
Impedance RF:
50Ω
Power RF:
50 W
Temperature:
-55°C to +85°C
Altitude:
50,000 ft.
Airspeed:
250 KTAS
Connector:
BNC (female)
FAA TSO:
C37d, C38d
RTCA Environmental:
DO-160D
