COMANT

CI 420-10 ComDat XM Antenna

Part No:

$922.00
Shipping calculated at checkout.
DESCRIPTION

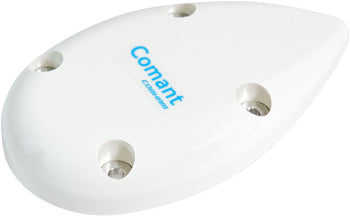

CI 420-10 ComDat XM Antenna

Comants ComDat XM Weather antenna (CI-420-10) is designed for Garmin GDL 69/69A receivers and Heads Up Technologies (HUT) receivers with short coaxial cable runs. This antenna features a robust TNC female connector, and conforms to the popular teardrop footprint standard on many general aviation aircraft and business jets. Used on most aircraft up to and including business jets.

Frequencies Covered: XM 2332.5 - 2345.0 MHz

Specifications

Weight:
4.2 oz

Connector:
XM - TNC (female)

Frequency:
2332.5-2345.0 MHz

VSWR:
1.5:1 Maximum

Polarization:
LHCP

Radiation Pattern:
Hemispherical

Impedance:
50Ω

Gain:
25 ±2 dB

DC Voltage:
3.6-24 Volts

DC Current Min/Max:
35mA / 55 mA

Noise Figure:
2.7 dB, maximum
