DESCRIPTION

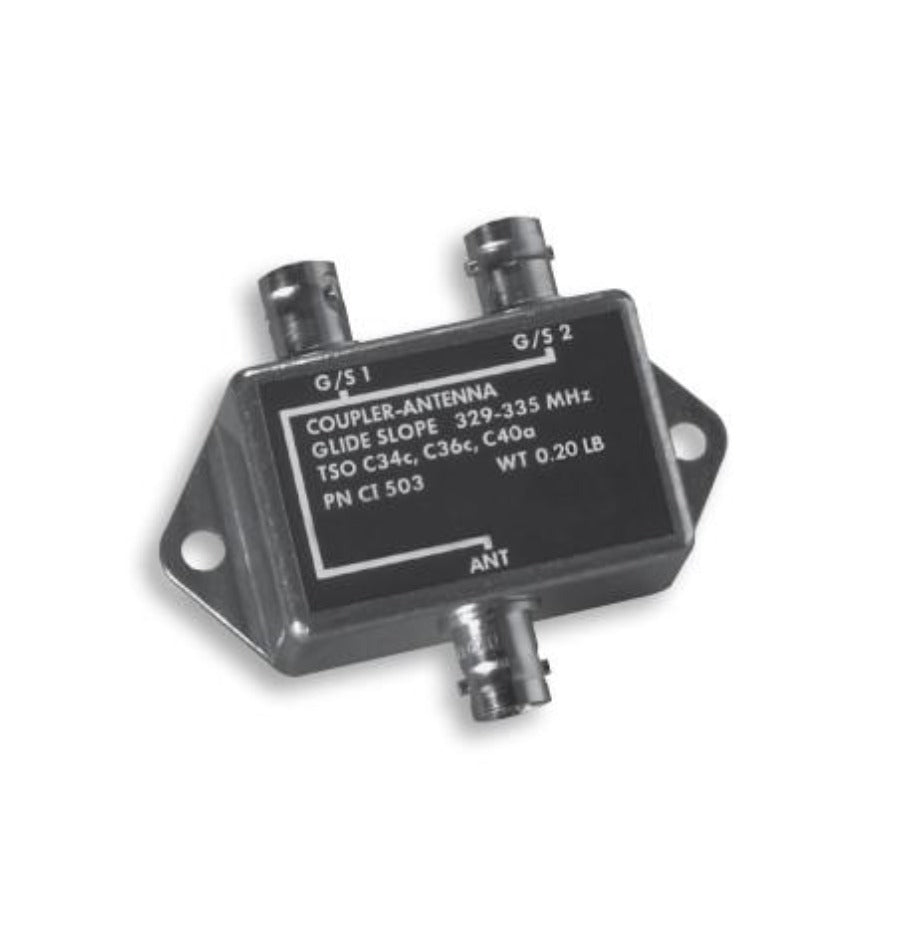

Comant CI 503 Coupler
Frequency 329-335 MHz
Dual glide slope coupler designed to allow the operation of two glide slope receivers from one glide slope antenna. Compact design makes installation easy.
Applications Internal mounting location. Frequencies Covered 329-335 MHz
Specifications
Specifications
|
MODEL CI 503 COUPLER VOR |
|
|
Electrical |
|
|
Frequency |
329-335 MHz |
|
VSWR |
1.5:1 Maximum |
|
Insertion Loss |
0.5 dB Maximum |
|
Isolation |
20 dB Minimum |
|
Impedance RF |
50 Ohms |
|
Mechanical |
|
|
Weight |
0.20 lb. Maximum |
|
Height |
0.88 in. Maximum |
|
Finish |
Aluminum |
|
Material |
Die Cast Aluminum |
|
Connector |
BNC (Female) |
|
Environmental |
|
|
Internal Mount |
|
|
Federal Specifications |
|
|
FAA TSO |
C34c, C36c, C40a |
