COMANT
DESCRIPTION

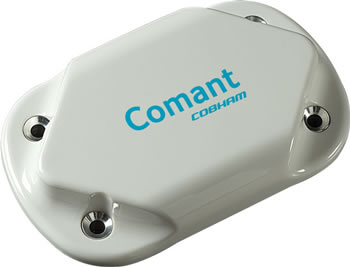

The CI-429-410 is an FAA TSOd GPS/XM antenna qualified under stringent C190 WAAS requirements. This antenna will operate with an y DO-301 qualified WAAS GPS system providing full Gamma 2 & 3 and LPV capabilities. The XM portion of the antenna will operate with popular panel mounted systems from Garmin and Heads Up.
Features
- Skydrol resistant radome and nickel plated aluminum base plate
- Uses the same footprint as the popular ARINC 743
- Comes standard with a Nitrile O-ring
- Operates with any DO-301 qualified WAAS GPS system
- Provides full Gamma 2 & 3 and LPV capabilities
- GPS 1575.42 MHz/ 26.5 - 32.5 dB gain frequency
- XM 2332.5 - 2345.0 MHz/ 25.0 +/- 2 dB gain frequency
Specifications
Weight:
8.5 oz
Connectors:
GPS- TNC (blue)
XM- TNC (red)
- GPS PREAMPLIFIER CHARACTERISTICS
Frequency:
1575.42 ±10.23 MHz
VSWR:
1.5:1
Polarization:
RHCP
Radiation Pattern:
Omnidirectional
Impedance:
50 Ohms (Nominal)
Gain @ 1575.42 MHz:
26.5dB MIN - 32.5dB MAX
DC Voltage:
4 to 24 VDC
DC Current Min/Max:
40mA TYP / 60mA MAX
Noise Figure:
2.5dB MAX
Stability:
Unconditional
- XM WEATHER DATA SPECIFICATIONS
Frequency:
2332.5 to 2345.0 MHz
VSWR:
1.5:1
Polarization:
LHCP
Radiation Pattern:
Omnidirectional
Impedance:
50 Ohms (Nominal)
Gain:
25 ±2 dB
DC Voltage:
3.6 to 24 VDC
DC Current Min/Max:
35 to 55mA
Noise Figure:
2.7dB MAX
