TCW
DESCRIPTION

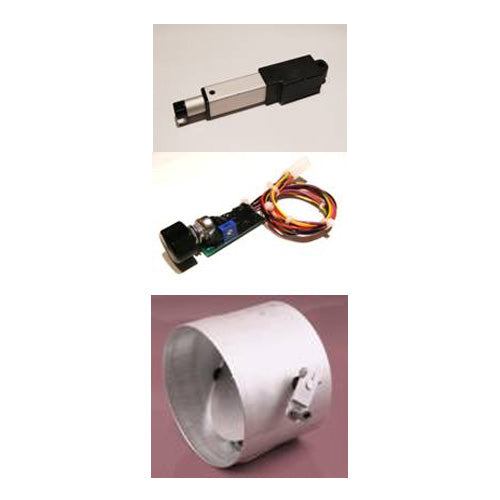

Control Valve Servo Kit (CVS) is a system for controlling valves and dampers and is ideal for heater flapper doors, oil cooler control, alternate air door, and ventilation dampers. The CVS kit includes an instrument panel mounted controller, linear actuator servo and a pre-made 5-foot wiring harness.
CVS is available in four different models: 12-volt standard (30 mm travel linear actuator servo), 12-volt heavy-duty (50 mm travel linear actuator servo), 24-volt standard (30 mm travel linear actuator servo) and 24-volt heavy-duty (50 mm travel linear actuator servo).
Control Valve Servo Kit
Non-certified
|
|
CVS-12V-KIT |
CVS-12V-KIT-HD |
CVS-24V-KIT |
CVS-24V-KIT-HD |
|
Input Voltage: |
10 – 15 volts DC |
10 – 15 volts DC |
22 – 30 volts DC |
22 – 30 volts DC |
|
Input Current: |
0.5 amp |
0.5 amp |
0.1 amp |
0.1 amp |
|
Servo: |
30 mm max travel |
50 mm max travel |
30 mm max travel |
50 mm max travel |
|
Max Drive Force: |
2.5 lbs. |
10 lbs. |
2.5 lbs. |
10 lbs. |
|
Max Holding Force: |
10 lbs. |
40 lbs. |
10 lbs. |
40 lbs. |
|
Temperature Range: |
-30° C to 70° C |
-30° C to 70° C |
-30° C to 70° C |
-30° C to 70° C |
|
Weight: |
Servo: 1.1 oz. |
Servo: 1.1 oz. |
Servo: 1.1 oz. |
Servo: 1.1 oz. |
For Experimental Aircraft Only, not TSO’d
