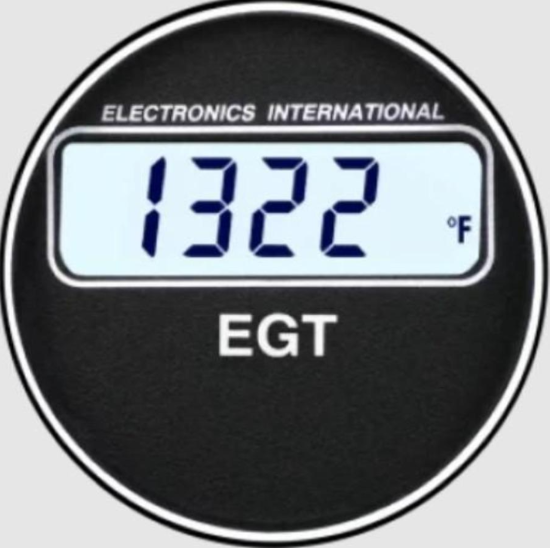

E-1 Single EGT Instrument

E-1 EGT/CHT Instrument

The line of Electronics International digital instruments offers precise readings at exceptional prices. All gauges are accurate to 1% and are FAA-approved under STC No.1626NM. Furnished complete with all probes and leads.

E-1: Single Channel EGT, 2 1/4" Mount, 2.5" Depth, 12 Oz. Kit, STCd, TSOd, PMAd, 1 Degree Resolution, Accurate within 1/2%, Viewable in direct sunlight, Backlit, Operates from 7.5 to 35 volts at .1 amp. Package Includes: Unit, 1 ea. 6 Cable, 1 ea. EGT Probe, All Wires and Connectors.

Don’t Need Your Glasses To Read

• Large digital backlit display.

Interpret Your Readings Faster

• The digital display allows for quick trend analysis.

Budget Friendly

• Same precision found in the most advanced analyzers on the market, but won’t break the bank.

Accurate, Dependable & Easy To Use

• LCD sunlight viewable and backlit for night operation.
• Electronics International consistently has been a leader in digital engine instrumentation since 1979.

Included in the package:

• E-1 Instrument
• P-110 EGT Probe
• 8’ Thermocouple Extension Cable
• Overlap Connectors
• Wire Harness
• Installation/Operating Instructions
• STC/AML

Dimensions
2.50” x 2.50” x 3.65” Deep, 2 1/4” Flush Mount

Weight
7 oz (Instrument Only)

Power Requirements
7.5 to 35 Volts, Typical: 0.1 amps @ 12 Volts

Display
Viewable in direct and indirect sunlight.

Backlight
Fully backlit and dimmable for night flights.

Certifications
FAA TSO’d, STC’d
