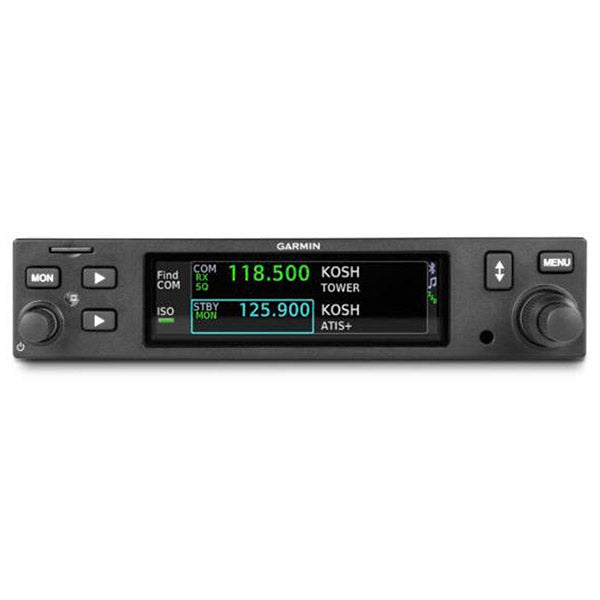

Garmin GTR 205x for Experimental Aircraft
Part No: 010-03395-01
DESCRIPTION
Garmin GTR 205x for Experimental Aircraft
Garmin is pleased to announce two new slimline radios for the experimental aviation market, building upon the recently introduced GTR™ 205 COMM radio series for certified aircraft. The panel-mount GTR 205x and remote mount GTR 205xR COMM radios have the same feature set as the GTR 205 radio plus new intercom and audio features. The 1.35-inch GTR 205x matches the bezel height of previous-generation radios, enabling easier upgrades and diverse installation opportunities in space-constrained instrument panels.
Features
- Small panel? The slim 1.35in height fits your aircraft with ease
- See your frequencies clearly on a large, bright, full-color LCD display
- Easy to use, with a familiar, intuitive interface
- Find your facility frequency with the worldwide database
- Monitor your standby COMM frequency
- Quickly tune to the 121.5 emergency frequency with a single touch
Specifications
- Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
- Frequency range: 118.000 to 136.992 MHz
- Transmit power: 10 watts (16 watts with optional enablement)
- Input voltage range: 9 to 33 VDC
- Operating temperature range: -20 to +55 C
- Dimensions: 1.35in H x 6.25in W (3.43 cm x 15.88 cm)
- Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
- Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
Questions & Answers
See below for answers to our most popular questions.
-
Question: What's in the box? Tray? Connectors? or just the radio? Thank you
Answer: Unit comes with the rack, backplate, connectors, and pins.
-
Question: Does it come with complete mounting tray ?
Answer: Yes, the mounting tray is included.
-
Question: Please, sorry about my english, i am brasiliam. For use as intercom to, please inform if it cames already with the wiring to conect to the interfom. Boase A-20 vith tou pins. Thank-you Ovidio Gasparetto
Answer: This does not come with wiring, although it does have an internal intercom you can use jacks on.
-
Question: Hello My SL30 failed and I just want to replace it with an only COM unit. Is the 205x elctrically interchangeable ? Best Regards
Answer: The wiring is different, but you should be able to repin the wiring you have for the new connector. GTR installation manual linked below.GTR 205x Installation ManualReach out to our Installation Sales Manager and he can get you the SL-30 Installation Manual for comparison.Matt Schlossmatt@gca.aero
